Optical Slit Patterns on Glass

A chrome-on-glass optical slit is a narrow transparent opening in an opaque film supported by glass. It defines a strip of admitted light for spectrometers, illumination shaping and optical alignment.

Optical Slit Patterns on Glass

Configuration and materials

Specify optical glass or fused silica, overall dimensions, thickness, pattern-side orientation and the clear aperture. Define transmission, reflectance or optical density at the working wavelength when optical contrast is critical.

  • Slit width and length, measured independently
  • Edge straightness, spacing and position relative to mounting
  • Wavelength, film opacity and substrate transmission

Optical function of the opening

An optical opening in the film

A clear slit in an opaque film selects an elongated transmitted region for a compatible instrument. Glass remains in the opening, so its transmission and reflections are part of the optical path.

Specify contrast and viewing side

Width and placement have separate roles

Width and length define the admitted field; straightness and location relate it to the instrument axis. Imaging blur and diffraction depend on the complete optical geometry and wavelength.

Optical references in measuring instruments

Choose by function

What it is and what it does

A chrome-on-glass optical slit is a narrow transparent opening in an opaque film supported by glass. It defines a strip of admitted light for spectrometers, illumination shaping and optical alignment.

When to choose it

Choose a glass-supported slit when the optical system can accept the substrate in the beam path and needs a stable, precisely positioned opening. Select substrate transmission for the actual wavelength.

How it differs from related products

The transparent slit passes light through intact glass. A metal foil slit has a physical opening with no glass beneath it. Their spectral transmission, reflections, mounting and handling requirements differ.

What can be customised

Slit width, length, number, spacing and orientation define the transmitted field. Film opacity, edge geometry and substrate thickness affect the light delivered to the instrument.

What you receive

A patterned glass slit component. The spectrometer housing, slit adjustment mechanism and detector are separate parts of the instrument assembly.

Where this product is used

Pattern and format options

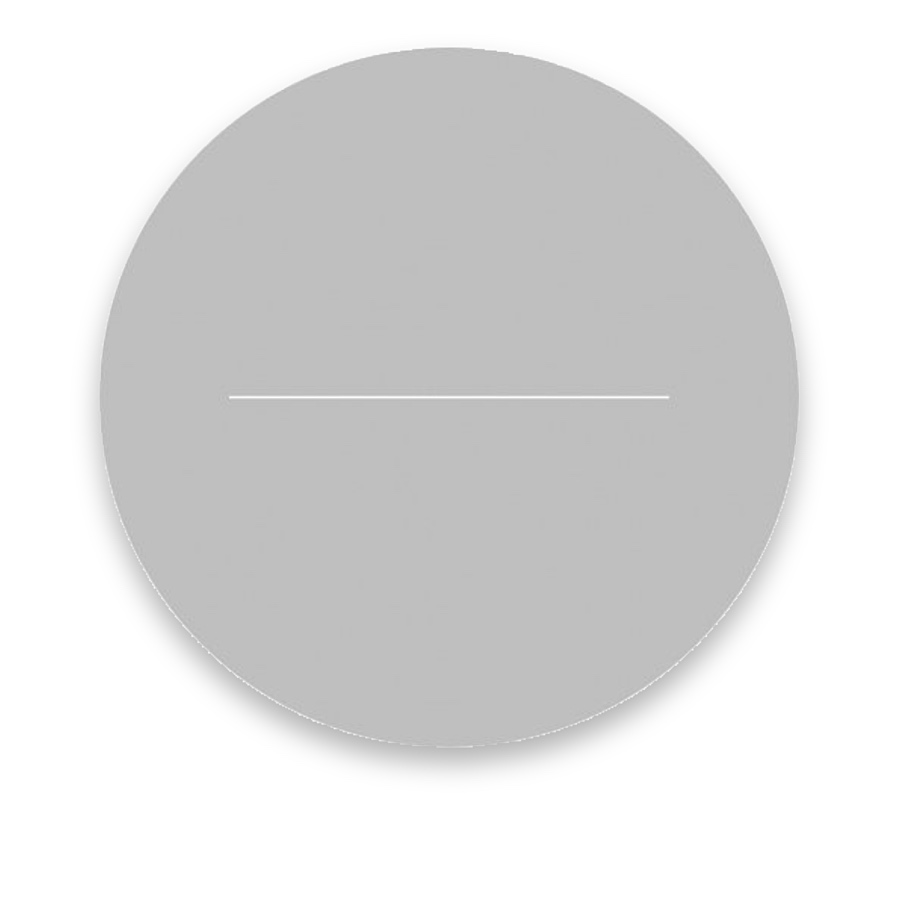

Optical Slit Patterns on Glass — LG5

LG5

Optical Slit Patterns on Glass — LG25

LG25

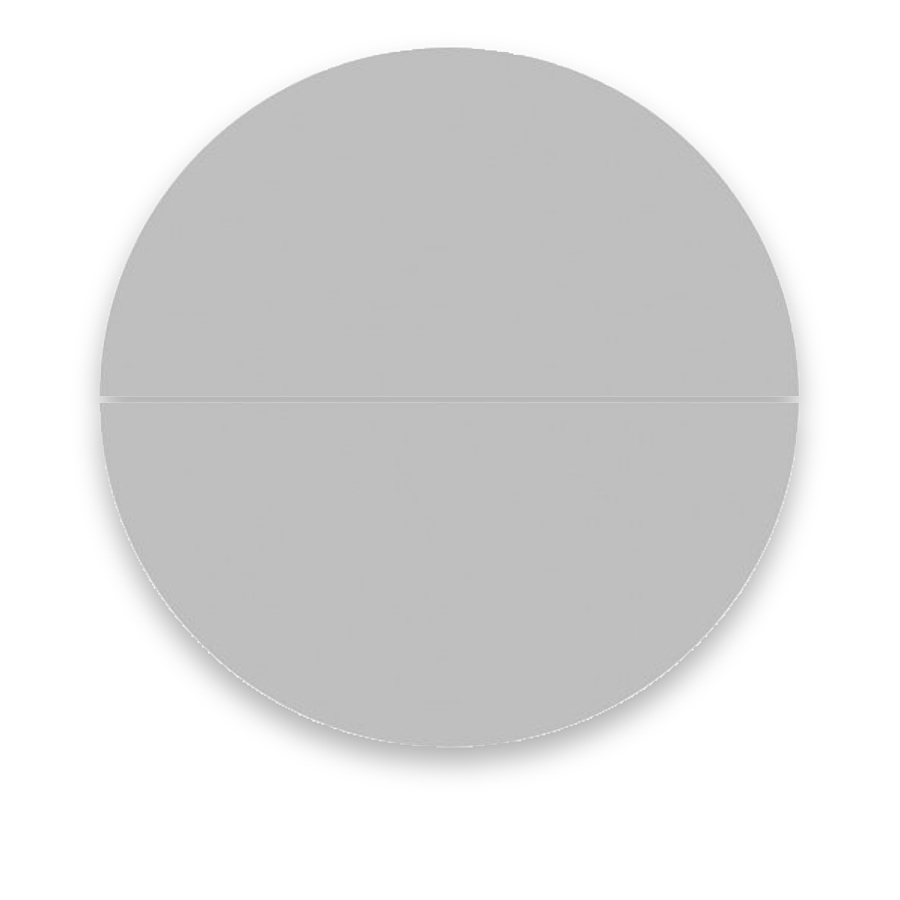

Optical Slit Patterns on Glass — LG100

LG100

Optical Slit Patterns on Glass — LG200

LG200

Common questions

Is the slit cut through the glass?

No. This product uses a transparent opening in the coating while retaining the glass support. A physical through-slot is a different construction.

Does a narrower slit always improve the measurement?

Only until other optical and sampling limits dominate. Reduced light can worsen noise or require longer integration.

Why specify the working wavelength?

Both clear-region transmission and blocked-region leakage depend on wavelength. Visible appearance does not establish UV or infrared performance.

Related pattern choices

Selection notes

Optical slit patterns on glass provide narrow transmitting lines matched to an instrument's optical path.

Choose line width, length, orientation and repetition for the field or beam shape, while defining the substrate separately.

Information for your inquiry

Slit geometry, array spacing, active field, polarity, glass thickness and datums.

How does a slit differ from a pinhole?

A slit supplies a line or narrow band of transmitted light. A pinhole supplies a local point-like opening; choose for the required optical field.
