Microscope eyepiece reticles, measurement graticules, patterned glass grids and custom optical reference patterns for observation, alignment and calibration.
Aiming, centring & alignment
Scales & optical measurement
Cells, particles & counting
Metallography & quantitative microscopy
Optical grids, coordinates & windows

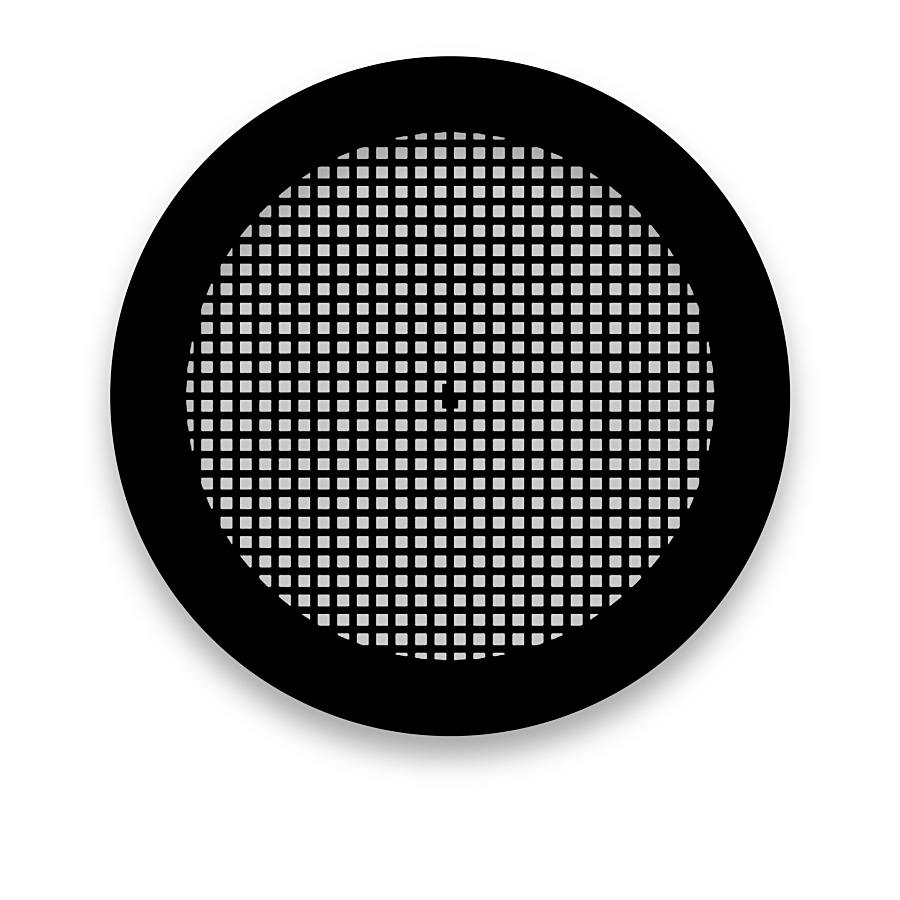

Square-Mesh TEM Specimen Grids

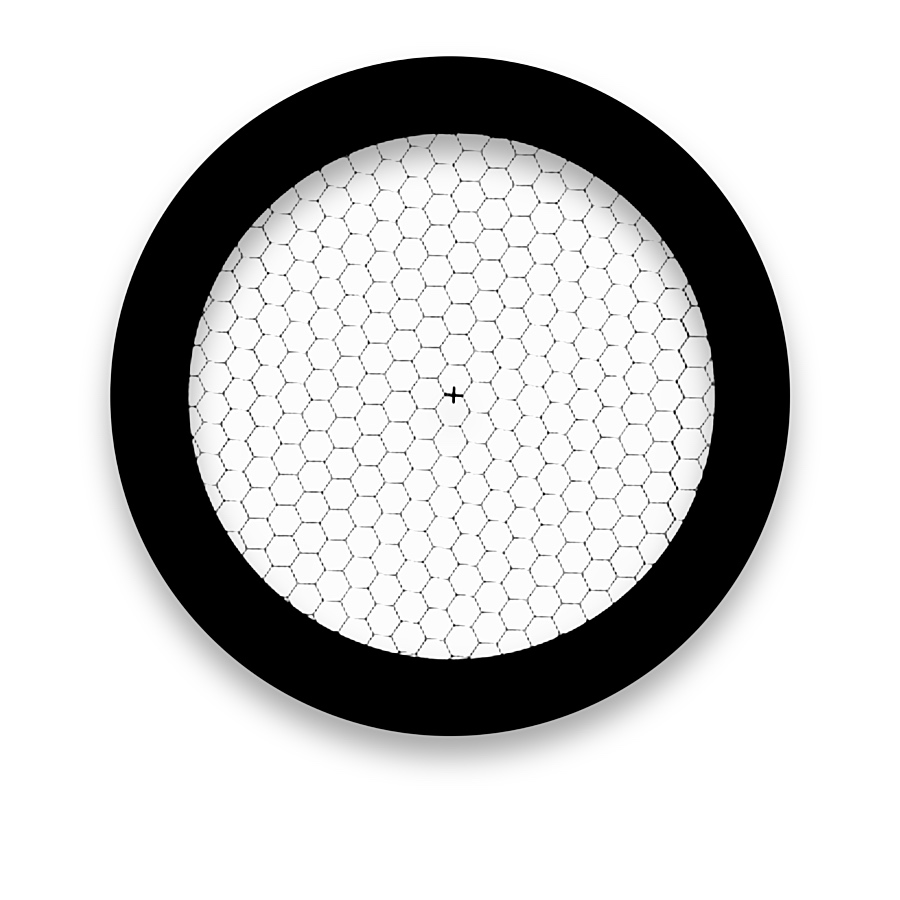

Hexagonal TEM Specimen Grids

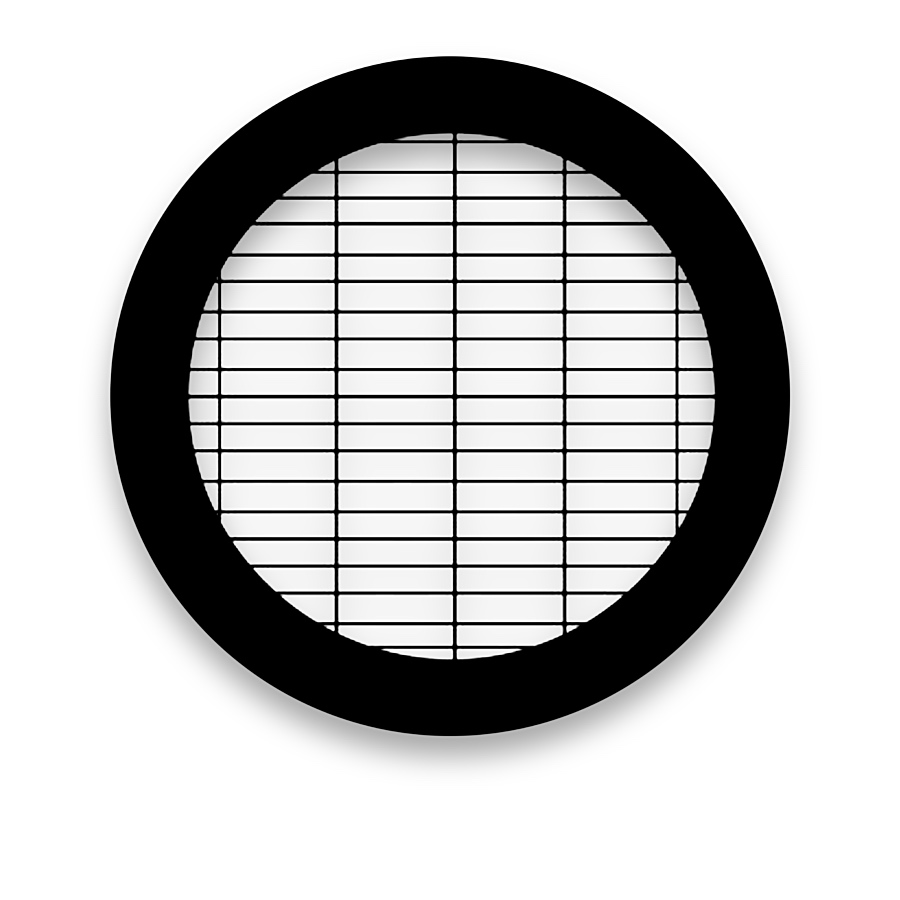

Rectangular-Mesh TEM Specimen Grids

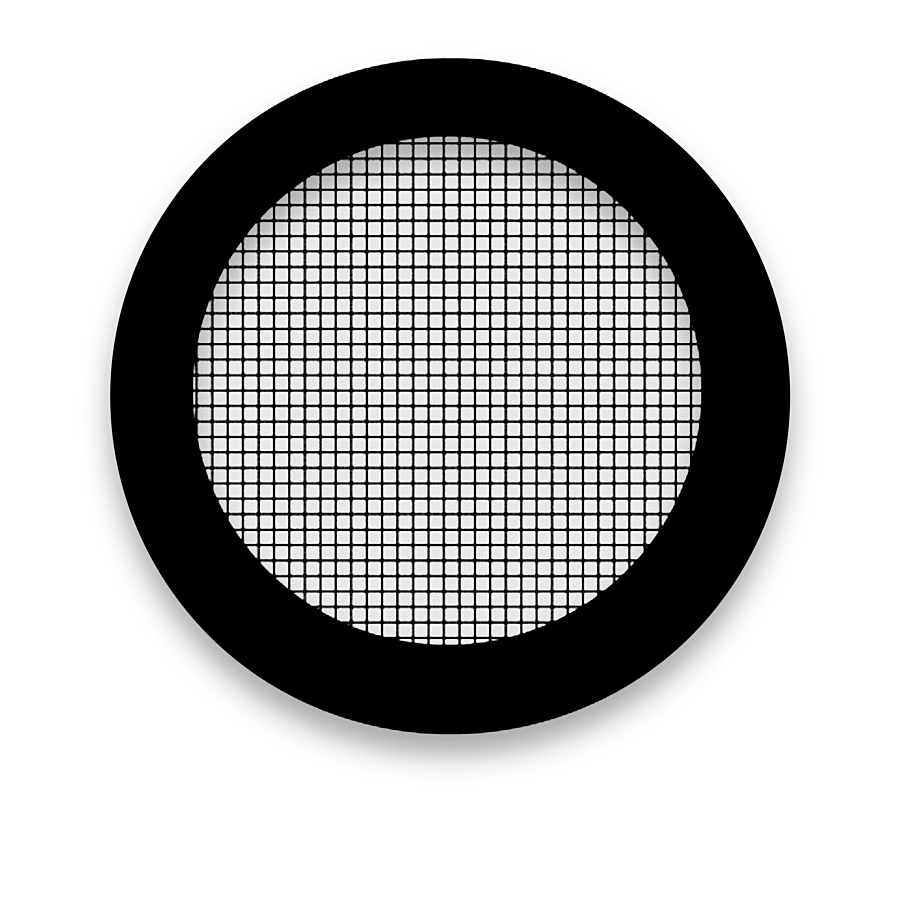

High-Open-Area TEM Specimen Grids

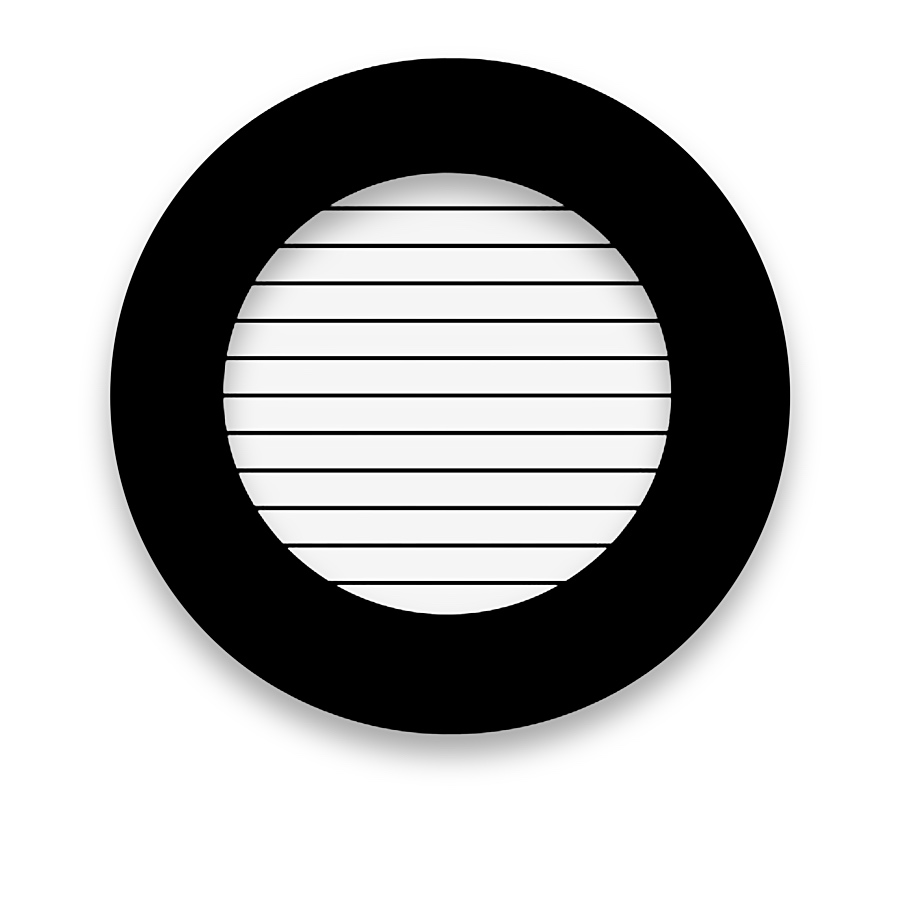

Parallel-Bar TEM Specimen Grids

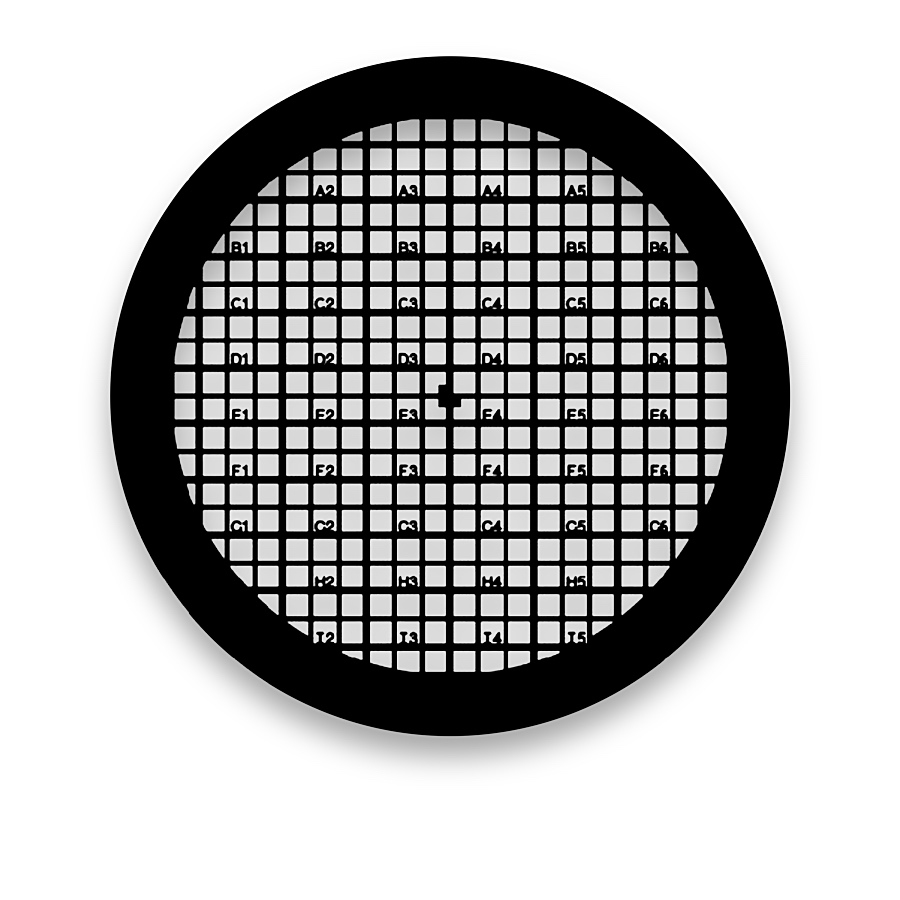

TEM Finder Grids

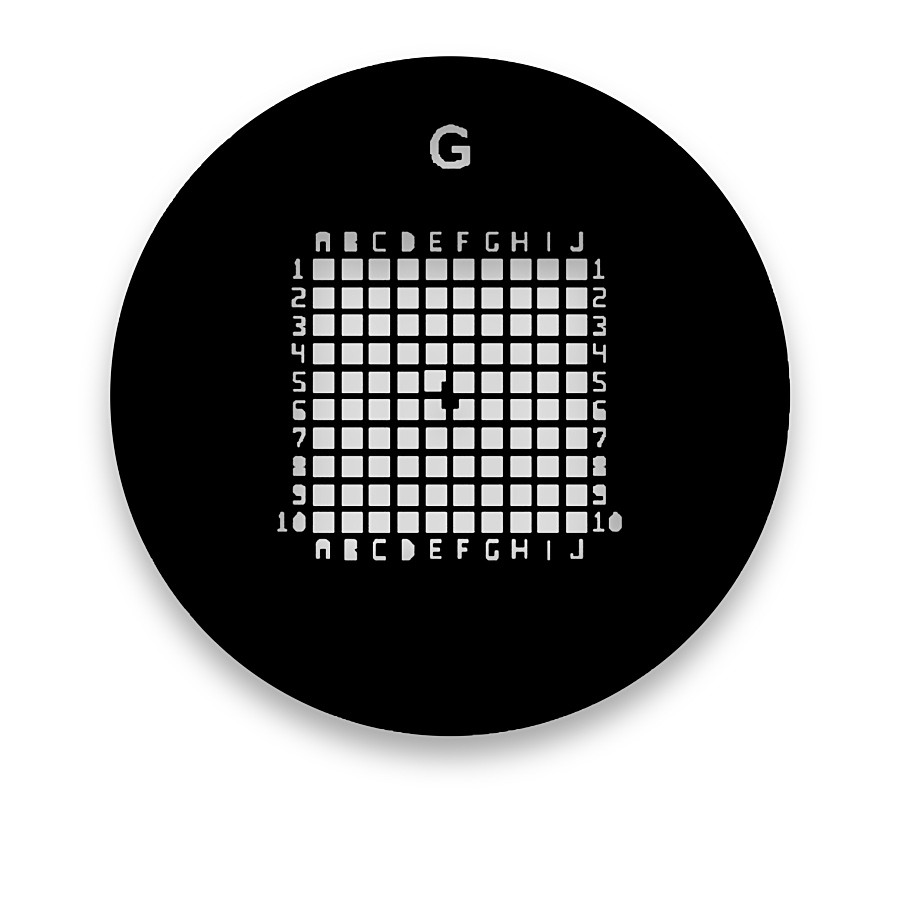

TEM Coordinate Grids

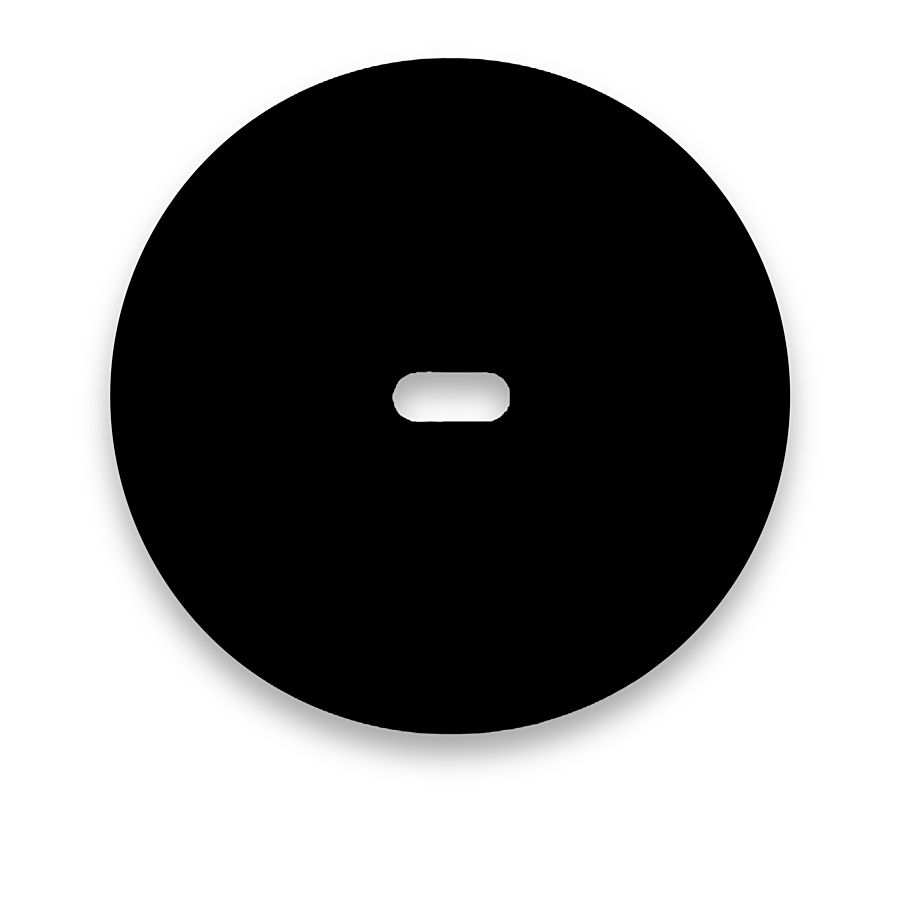

Slotted TEM Specimen Grids

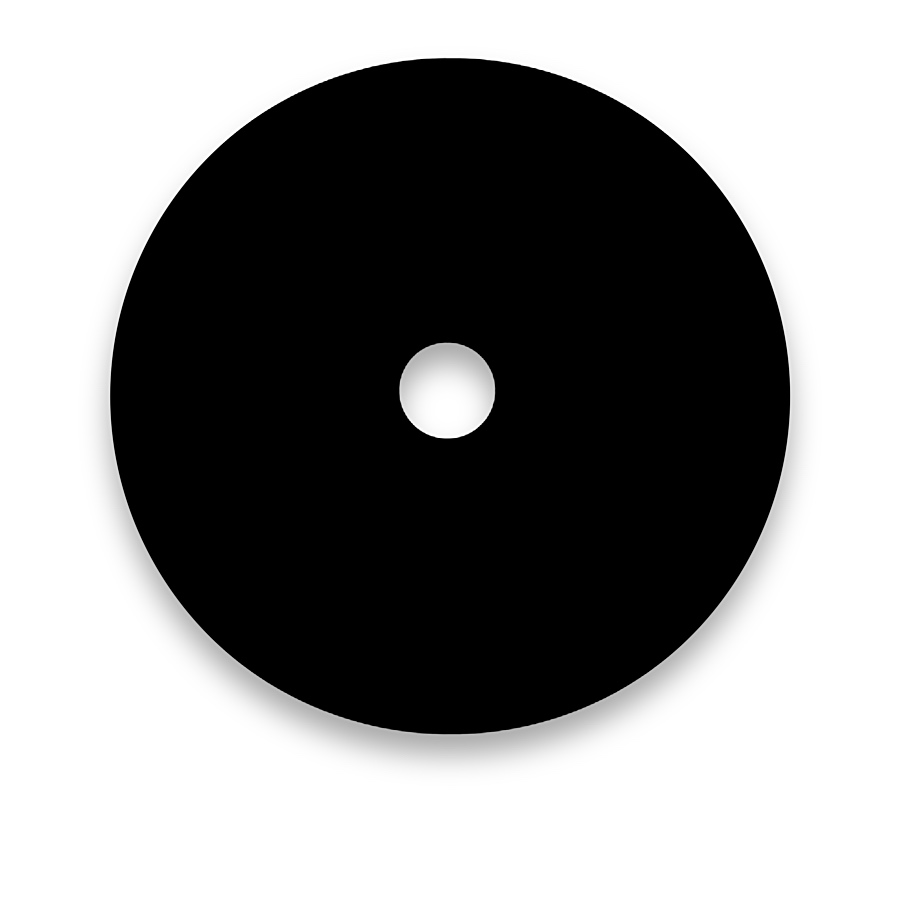

Circular-Hole TEM Specimen Grids

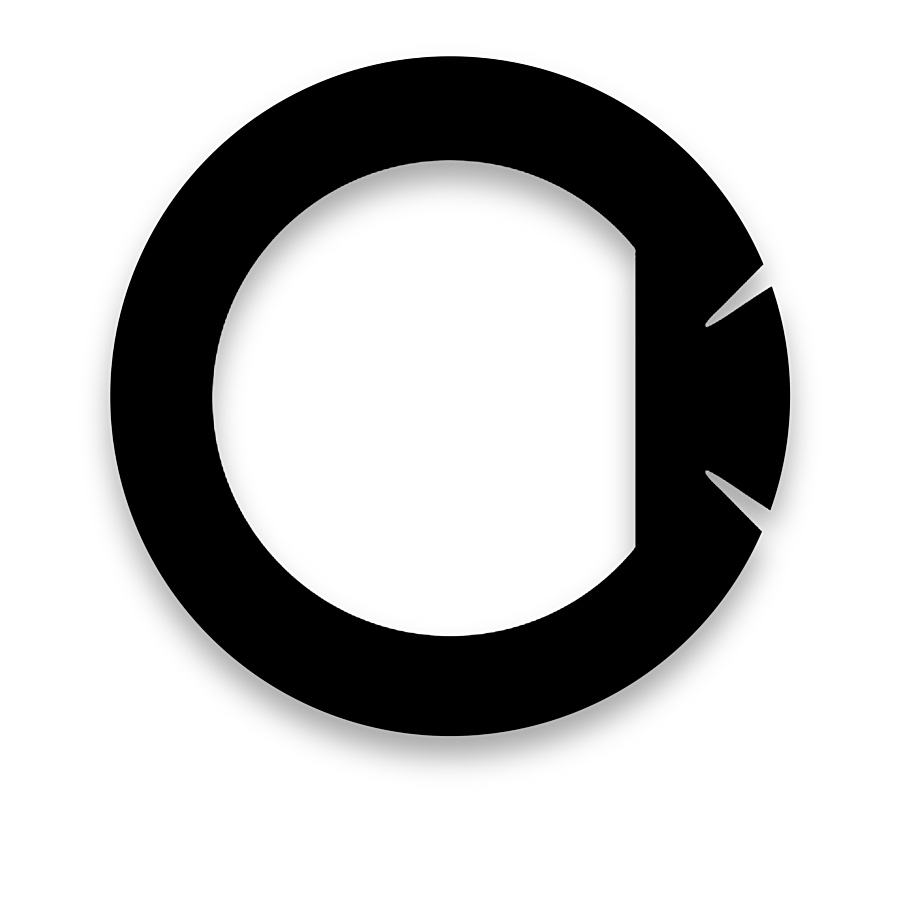

Specialist TEM Specimen Grids

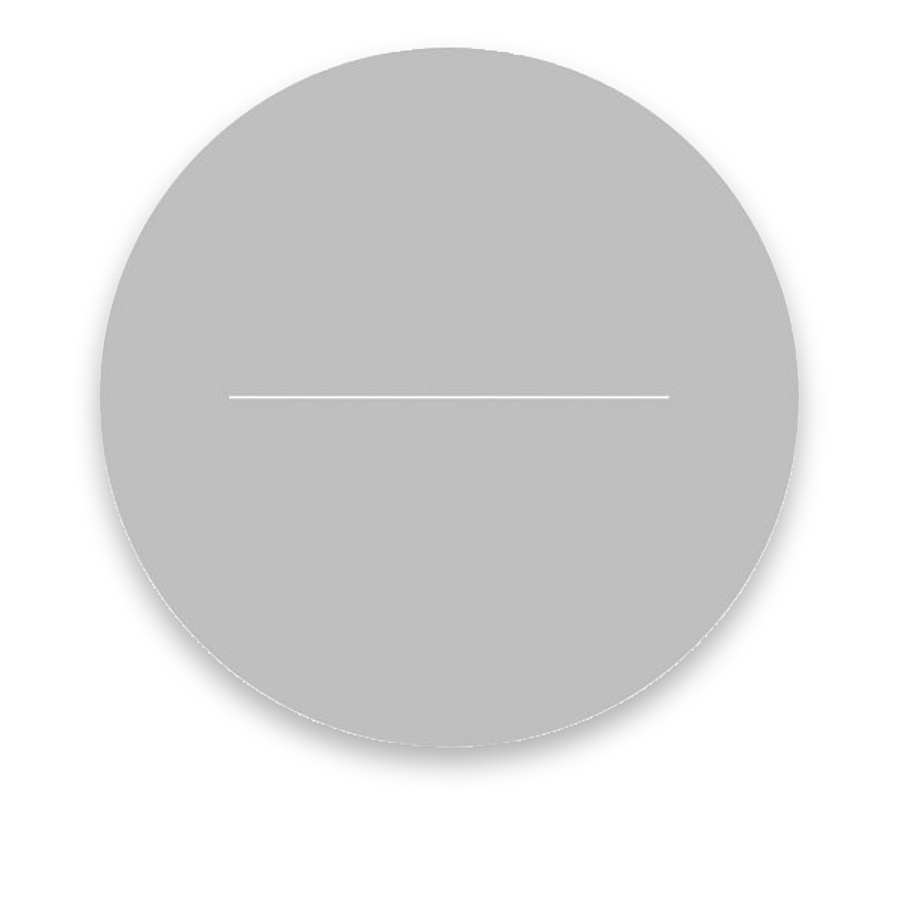

Optical Slit Patterns on Glass

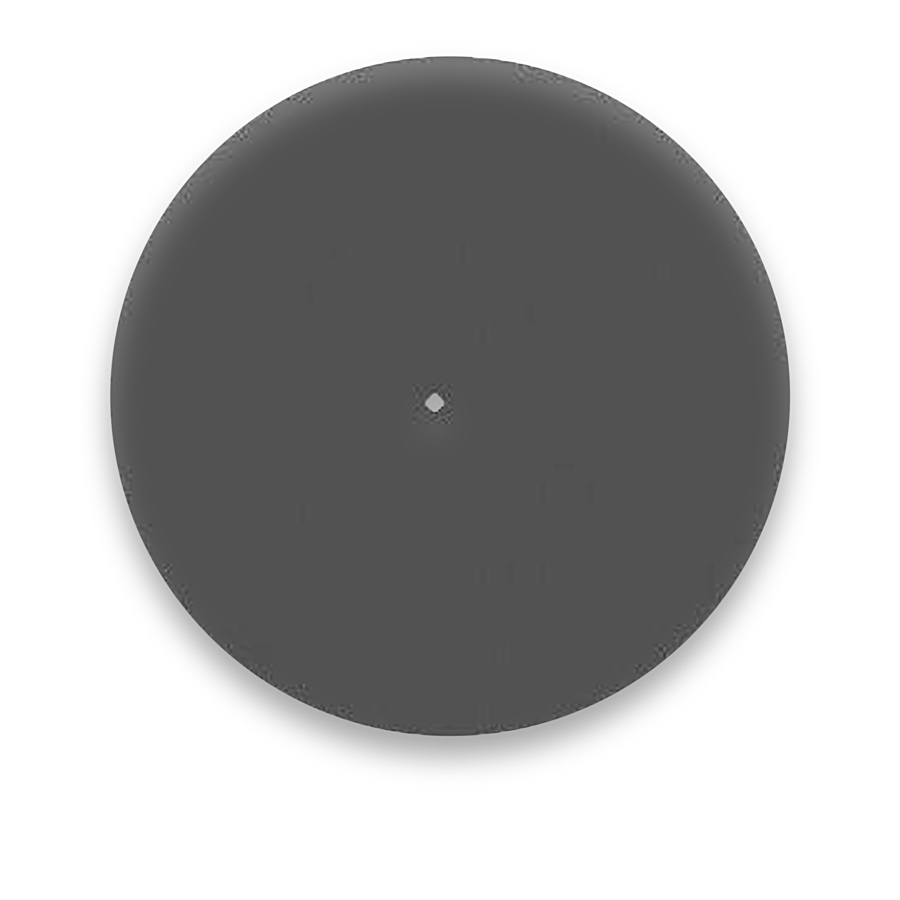

Optical Pinhole Patterns on Glass
Chrome Amplitude Gratings
Find the right product for the task
| Task or choice | Product route | Why it matters |
|---|---|---|

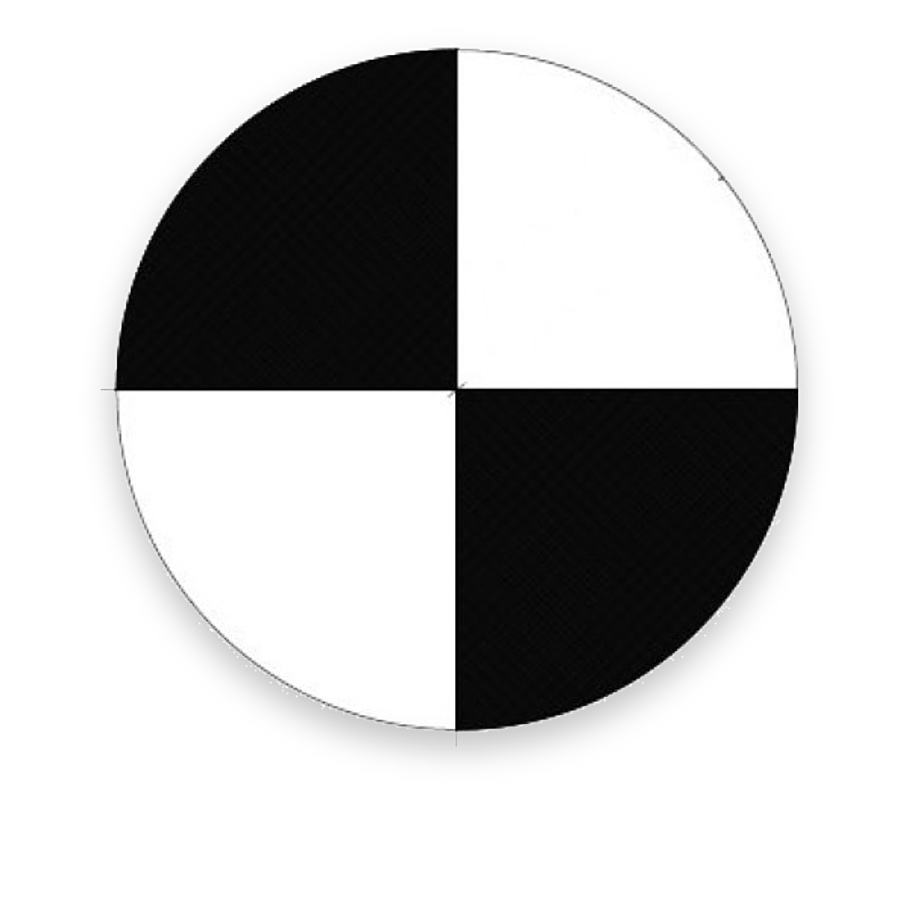

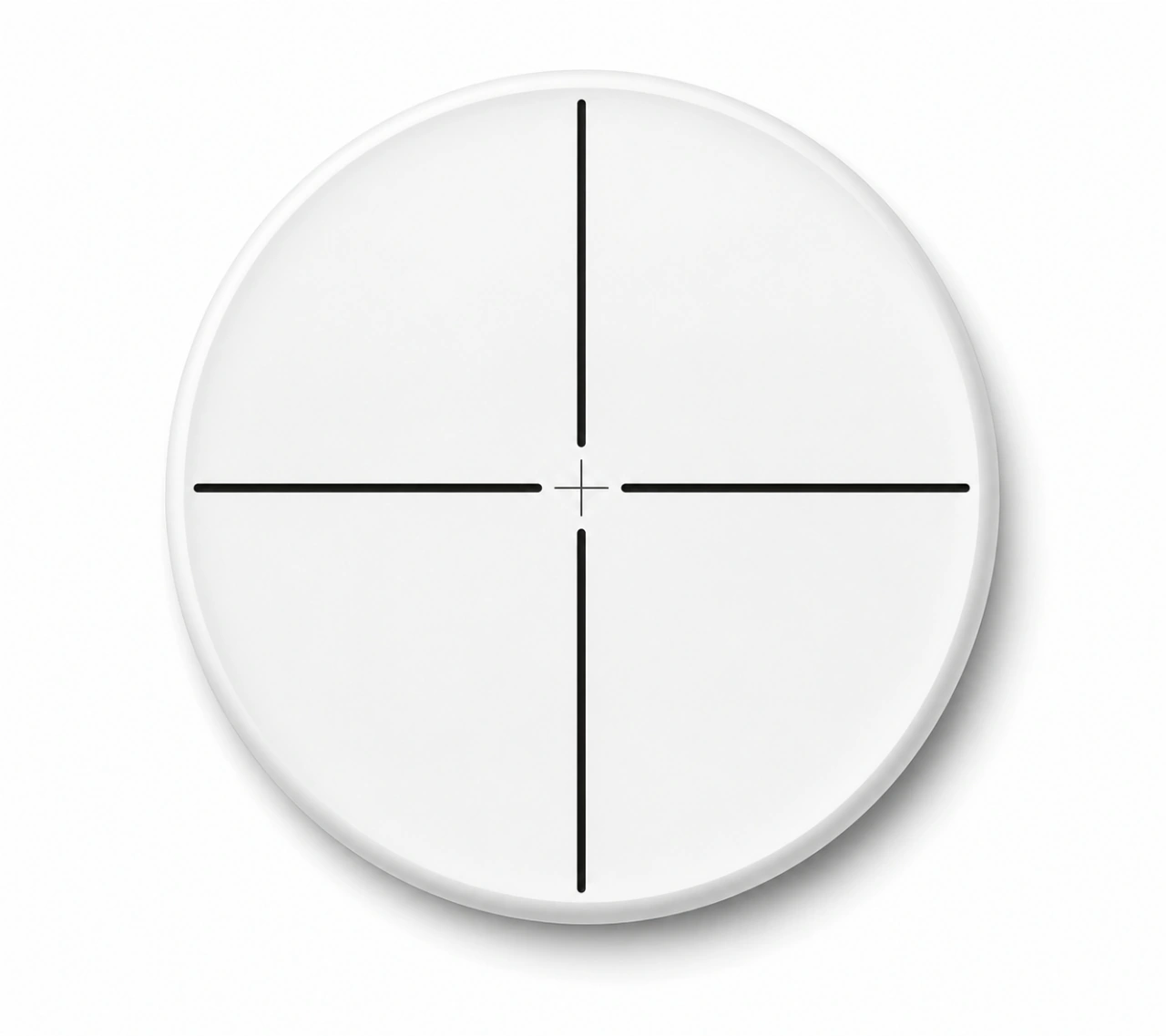

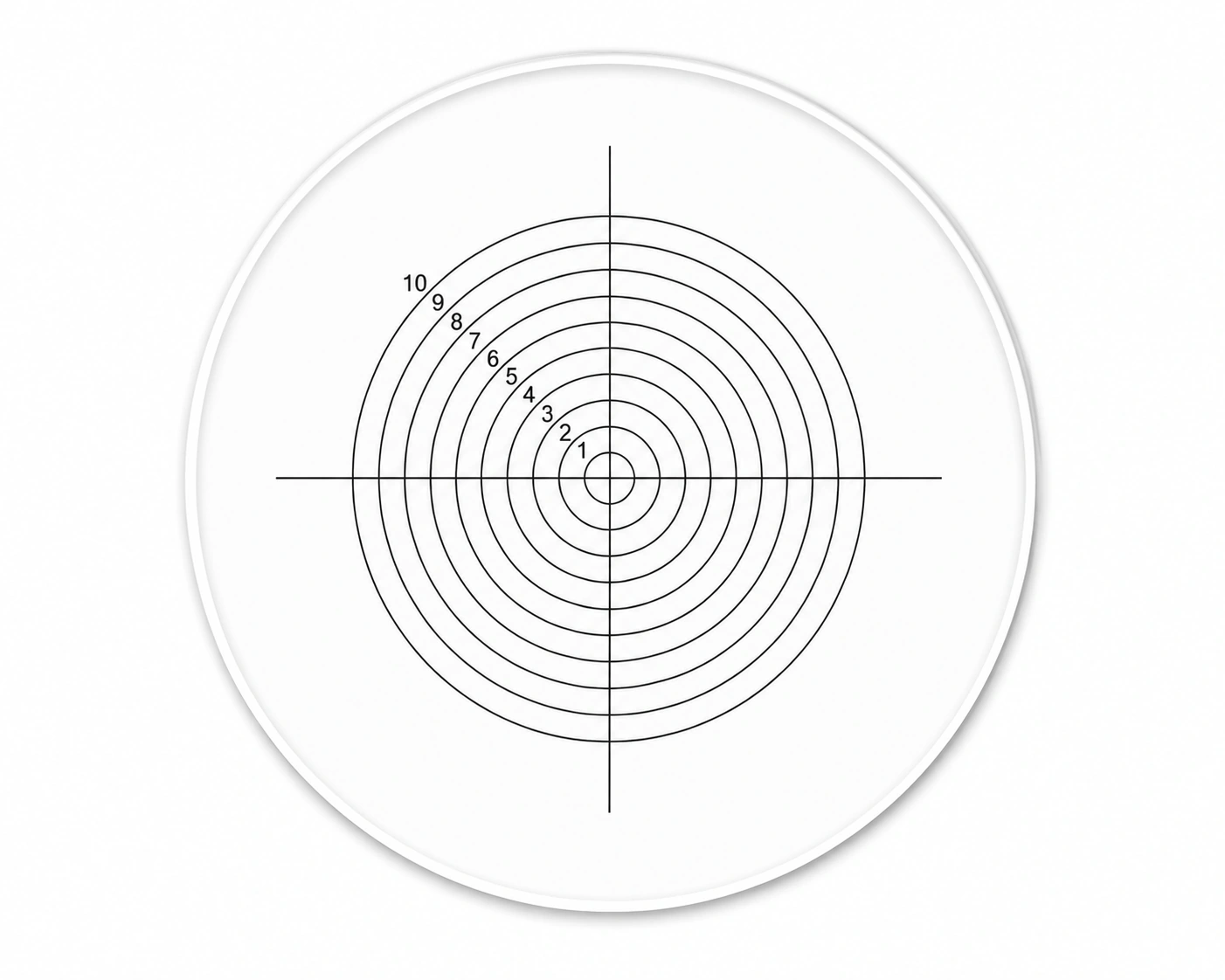

| Centre or aim | Crosshair / quadrant / concentric circles | Place a visible reference in the optical image to compare centre, direction or symmetry. |

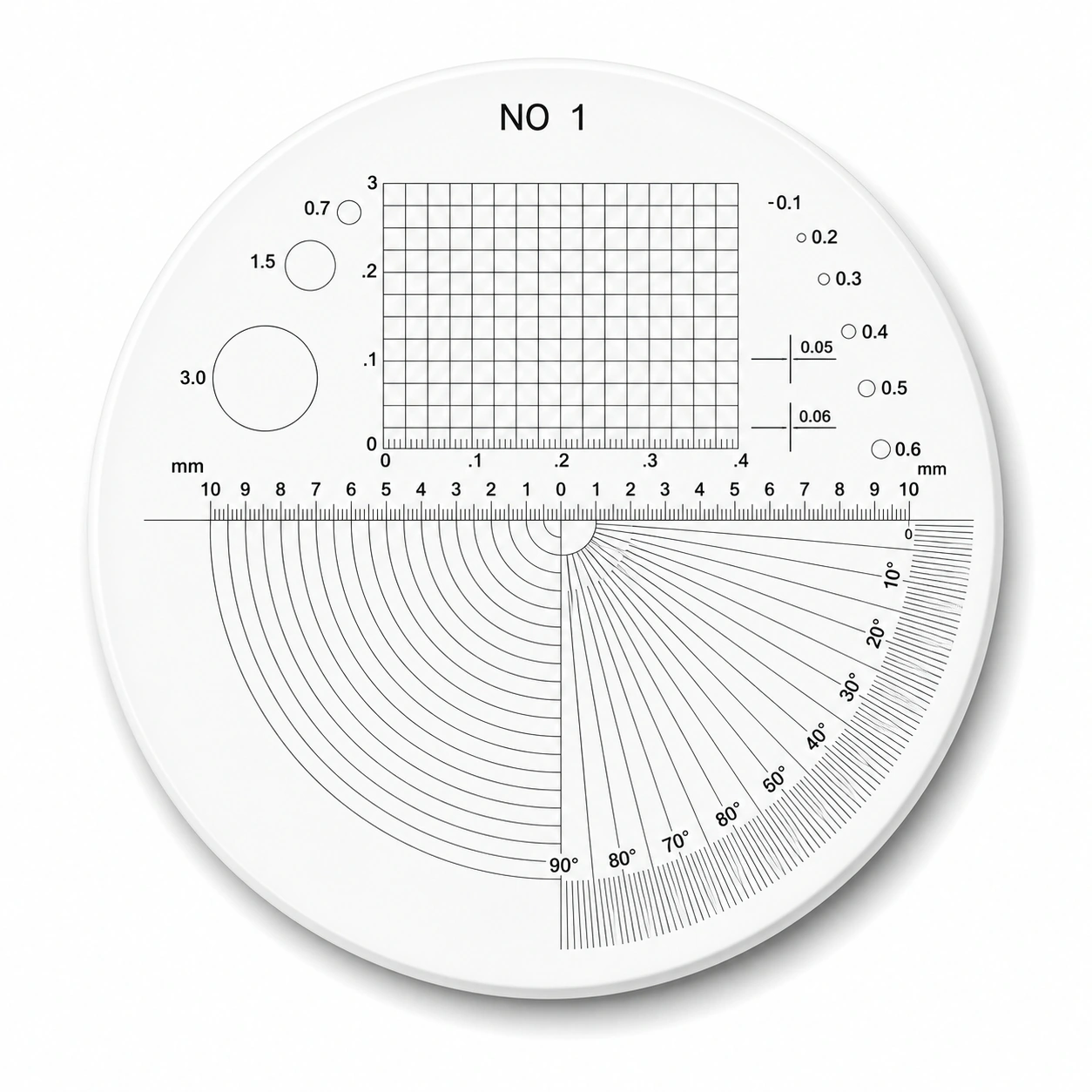

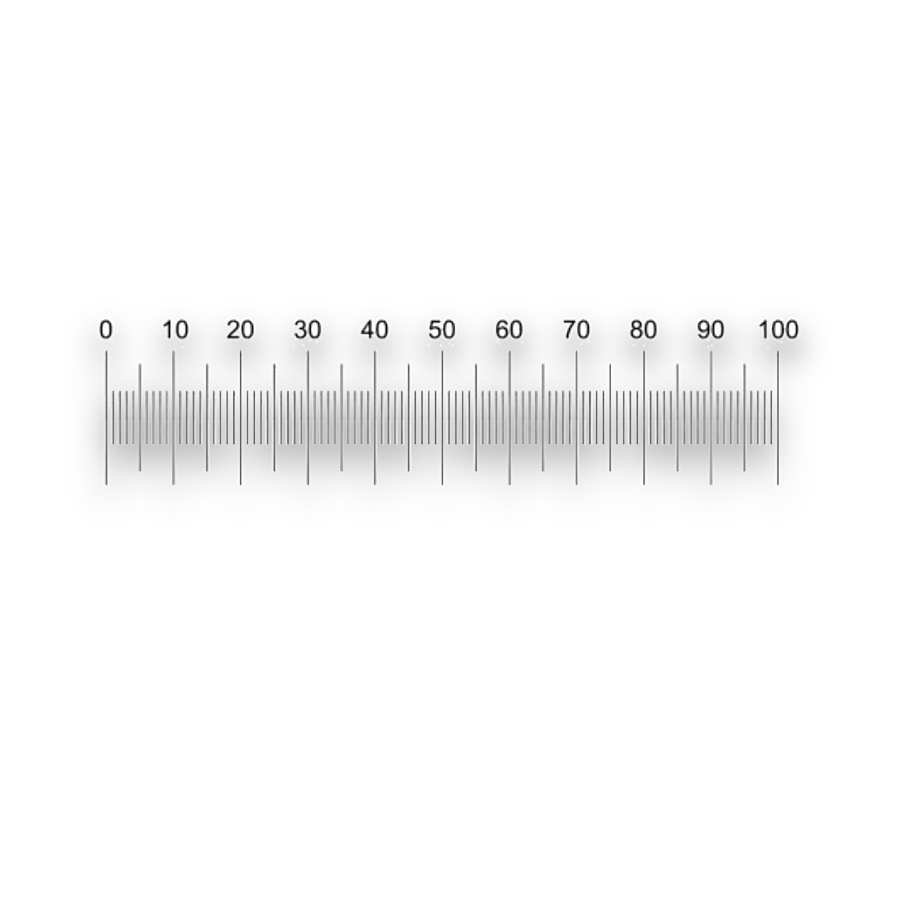

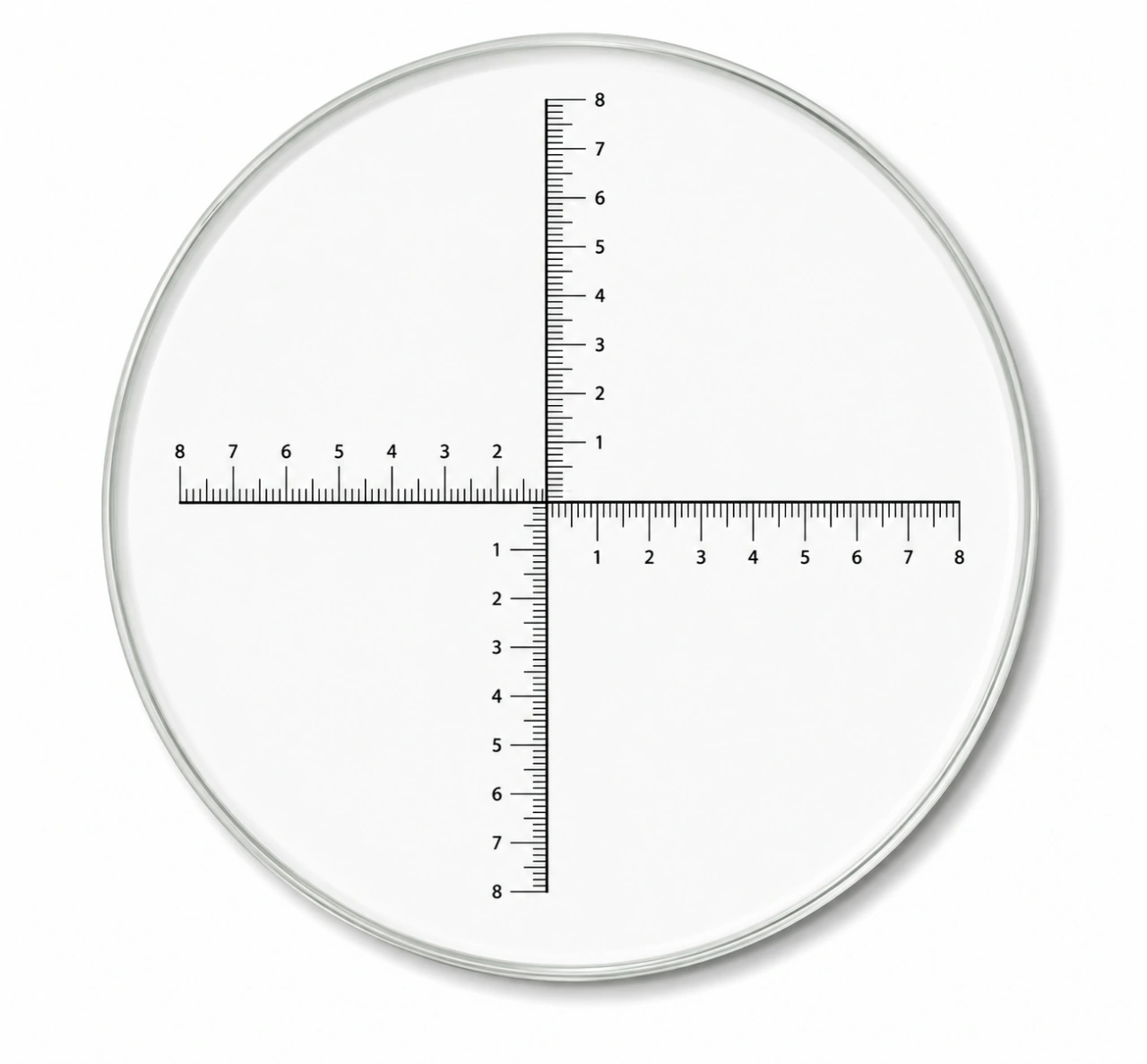

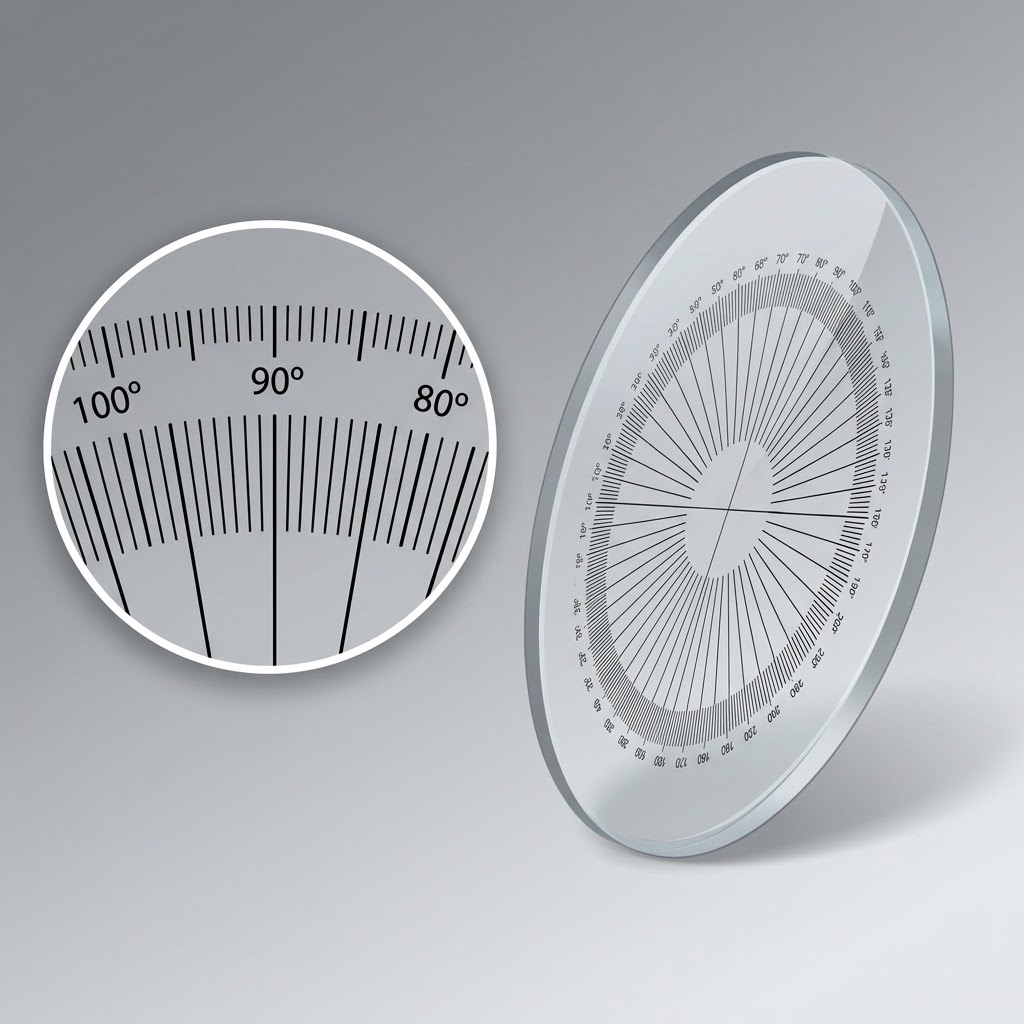

| Measure length or angle | Graduated scale / crossed scale / protractor | Select the measured quantity and calibrate specimen-plane length when using eyepiece divisions. |

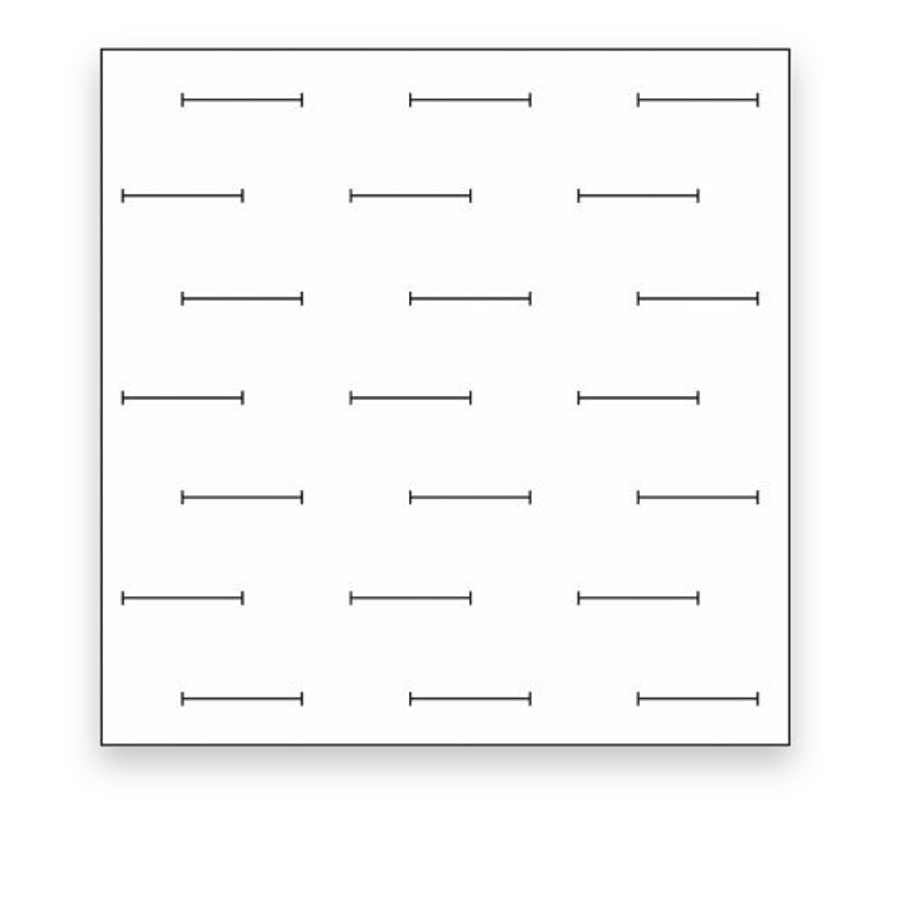

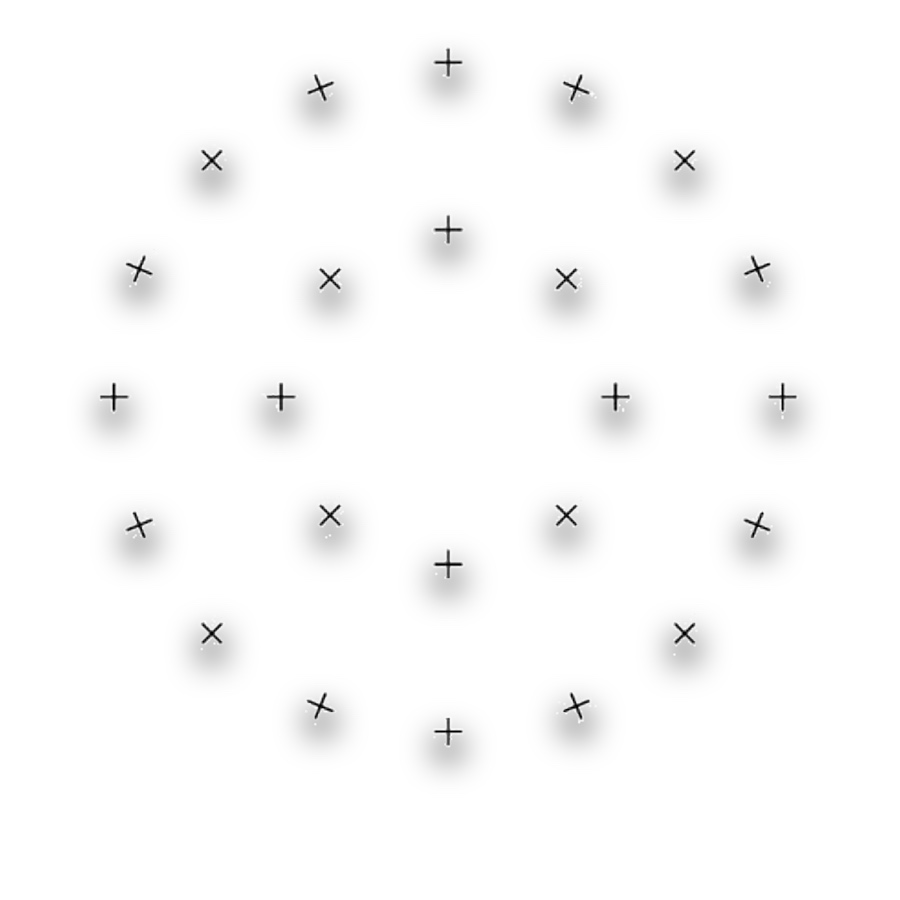

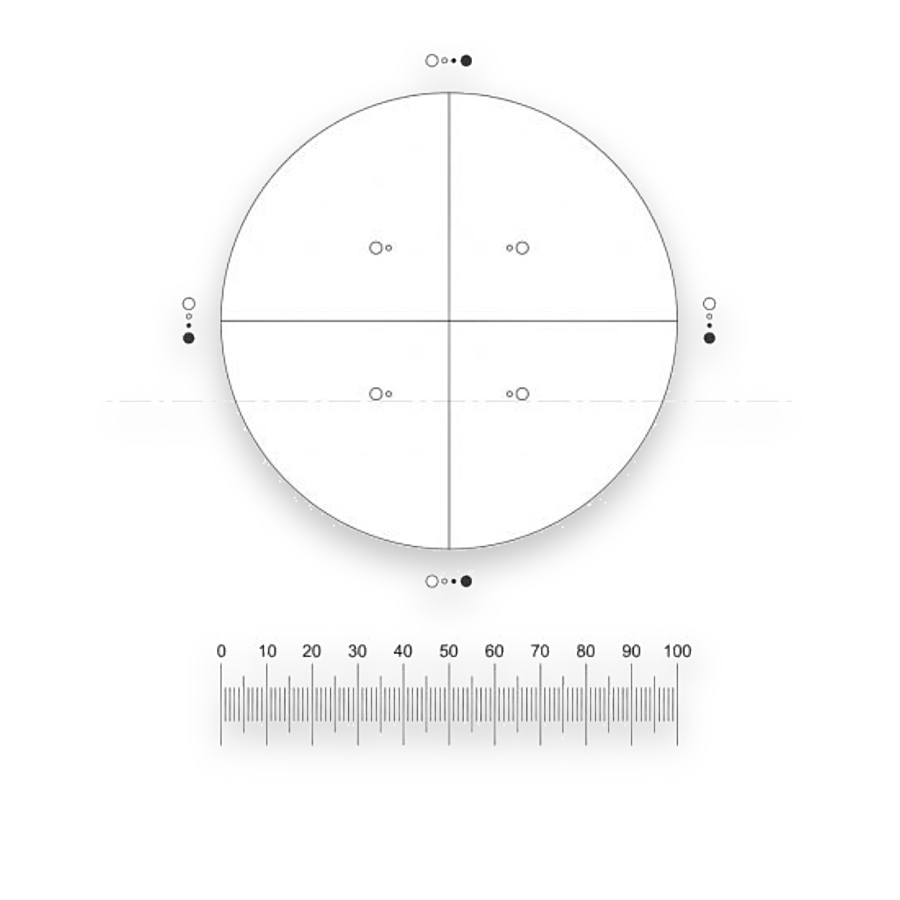

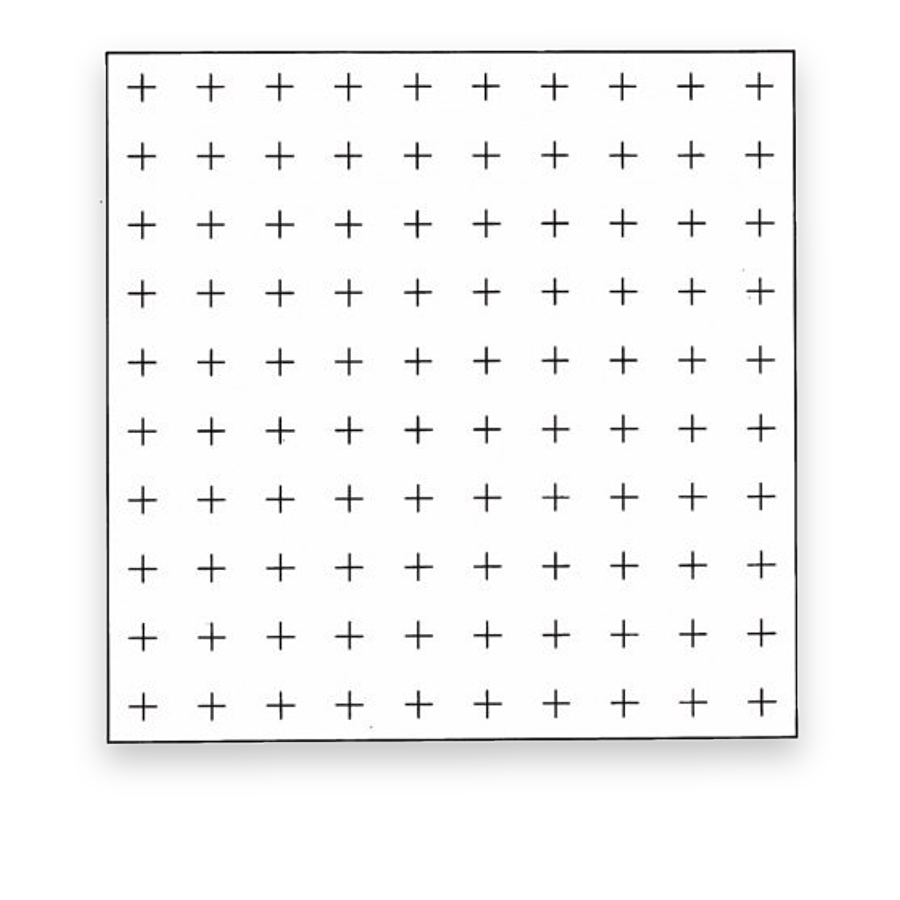

| Count or sample | Grid / point array / stereology pattern | The pattern supports a sampling method; area counting alone does not define a liquid volume. |

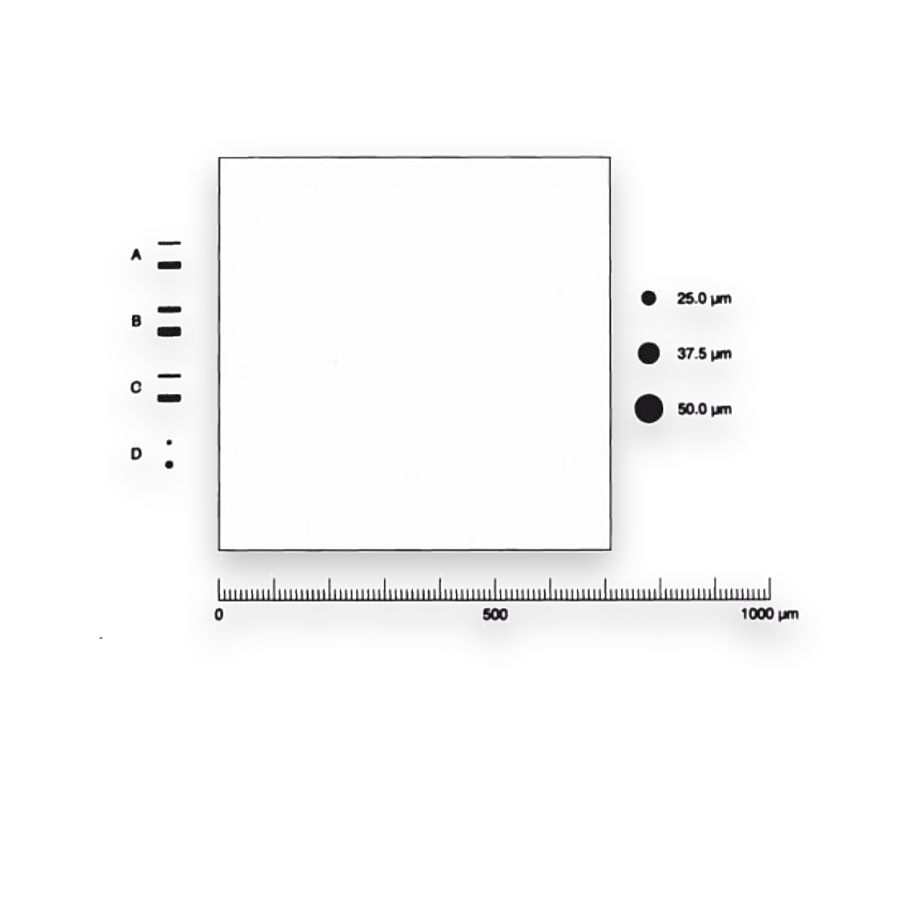

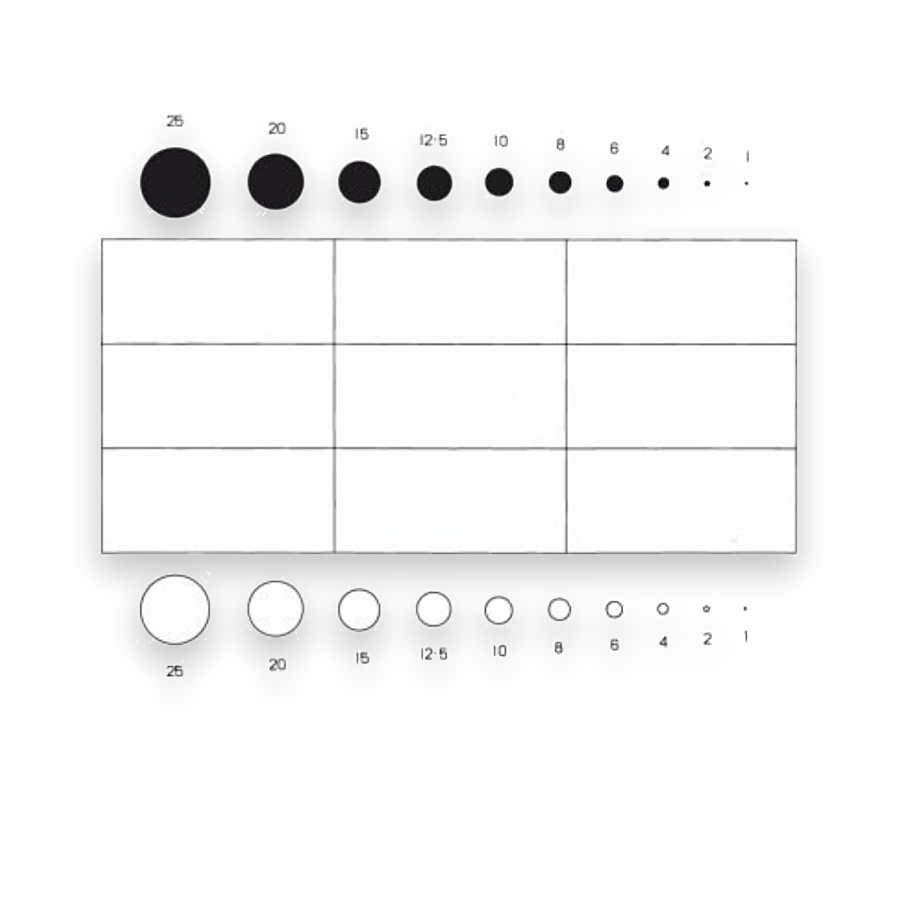

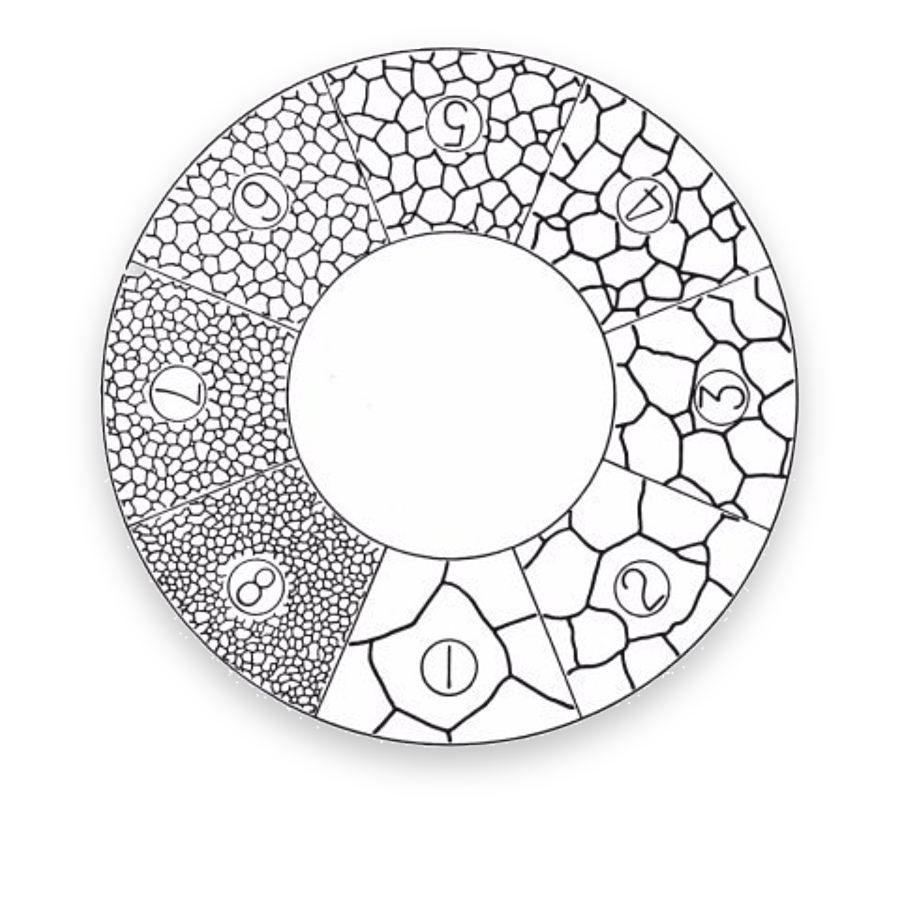

| Compare a feature | Particle / grain / inclusion references | Match the comparison pattern and microscope setup to the particular examination method. |
Bring the selected options into one specification
- Pattern artwork and reference features
- Clear aperture and substrate dimensions
- Feature size, scale and registration
- Contrast, cleanliness and inspection criteria
Put the right reference in your field of view.
TL OPTIK turns scales, crosshairs and precision grids into instrument components. For observation, alignment or counting, define the useful field, line width and graduation spacing first. We then review substrate dimensions, pattern orientation and mounting references against your instrument drawing.
Discuss your reticle designRelated technical guidance
Selection notes
Reticles and graticules introduce scales, crosshairs, circles or grids into an optical field for observation, alignment and measurement.
