An observation field and reference features support checking a particle-inspection imaging setup. Reference geometry and actual contamination are different quantities.
Specify optical glass or fused silica, overall dimensions, thickness, pattern-side orientation and the clear aperture. Define transmission, reflectance or optical density at the working wavelength when optical contrast is critical.
A reference slide supplies known outlines or size classes for inspecting visible contamination. Use the same illumination and magnification when comparing particles with the reference.
Choose the pattern for the counting methodParticle counts on a filter or slide become a cleanliness result only when sampling area, extraction and reporting units are defined. Image appearance alone does not establish material identity or chemical composition.
Optical references in measuring instrumentsAn observation field and reference features support checking a particle-inspection imaging setup. Reference geometry and actual contamination are different quantities.
Define the image-analysis task, size thresholds and reference features. Validate illumination, focus and segmentation before comparing particle measurements.
Sizing circles and reference features support visual comparison. A counting grid only partitions an area. Particle appearance also depends on focus, illumination and the measurement definition, such as projected diameter rather than physical volume.
Line geometry, graduations, labels, field diameter, substrate thickness and mounting outline can be matched to the instrument. Contrast and line density should allow the reference and the specimen to remain visible together.
A patterned glass reference component with the selected graduations, outline and mounting dimensions, accompanied by the specified inspection records.
Reference features for particle-detection checks.

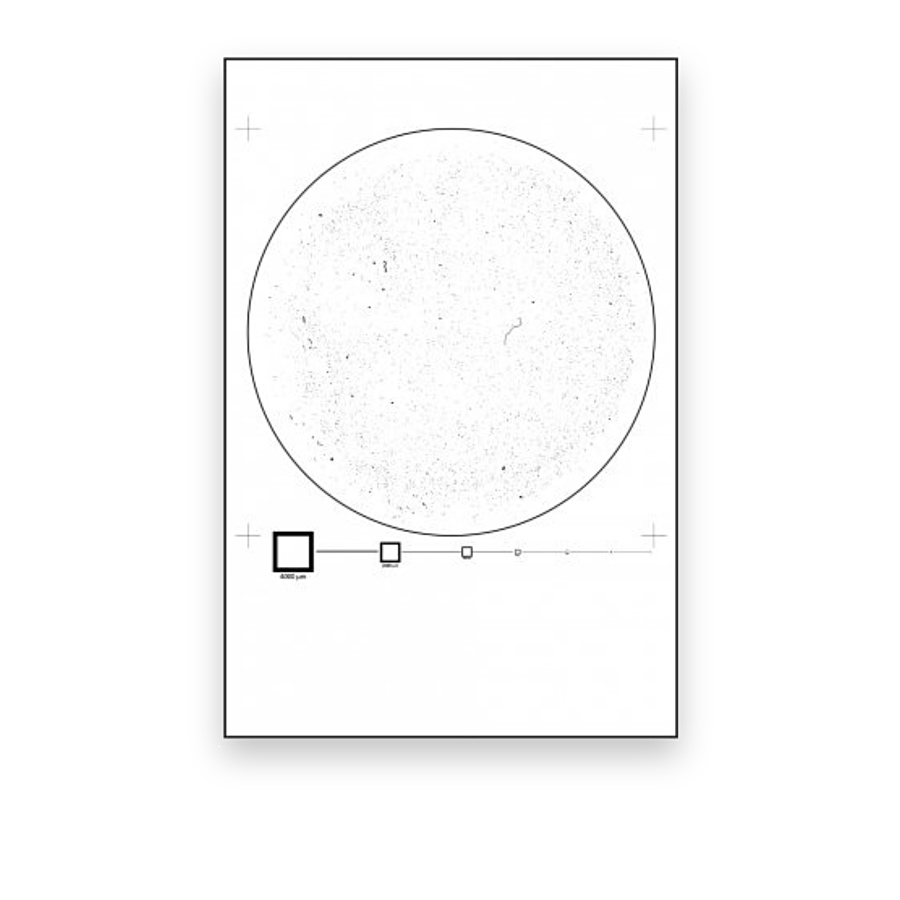

Cleanliness reference slides provide known particle or dimensional patterns for checking microscopic inspection and image-reading settings.
Choose the pattern for the detection range and procedure, then record magnification, lighting and analysis settings.
Reference sizes, layout, method, magnification, illumination and required records.
It supplies a known reference for checking or comparing the reading configuration. Evaluate real specimens using the applicable inspection method.
