A metal specimen-support grid provides physical openings for transmission electron microscopy. Its bars or surrounding frame support the specimen or a thin support film while leaving observation areas open.
Metal grid material, support-film type and compatibility with the specimen preparation method are selected together. A glass substrate is not part of this specimen-grid structure.
Wider bars provide more support but obscure more of the specimen. Larger openings expose more area but place greater demands on the specimen or supporting film. Mesh count alone does not define the clear opening: bar width also matters.
A metal specimen-support grid provides physical openings for transmission electron microscopy. Its bars or surrounding frame support the specimen or a thin support film while leaving observation areas open.
Choose the opening shape and support-bar arrangement around the specimen dimensions, support film and holder. Open area and mechanical support must be considered together.
A TEM support grid has physical openings. A chrome-on-glass reticle has a continuous optical substrate and serves a different observation or alignment role. Similar lattice geometry does not make the components interchangeable.
Mesh geometry, bar width, outer format, material and any support film determine the configuration. Coordinate marks add an address system without changing the fundamental specimen-support role.
The component definition identifies the metal grid and any support-film coating separately. Specimen preparation and the microscope holder remain separate parts of the workflow.
No. The pitch and bar width together determine the physical clear opening.

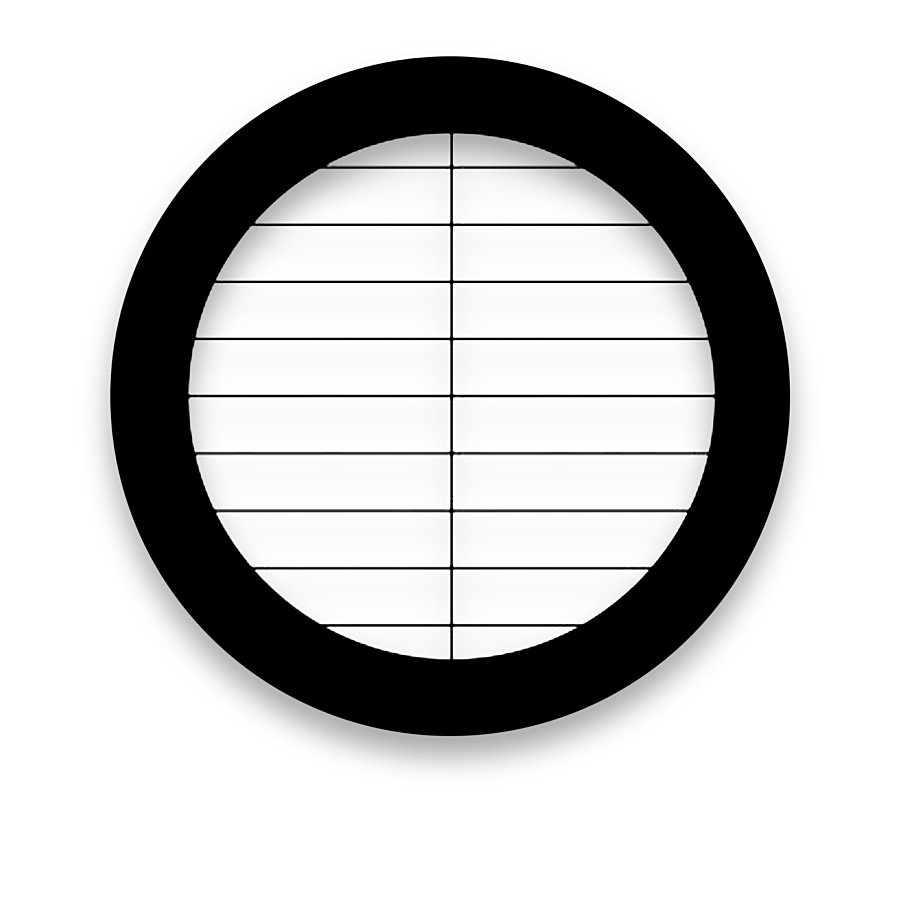

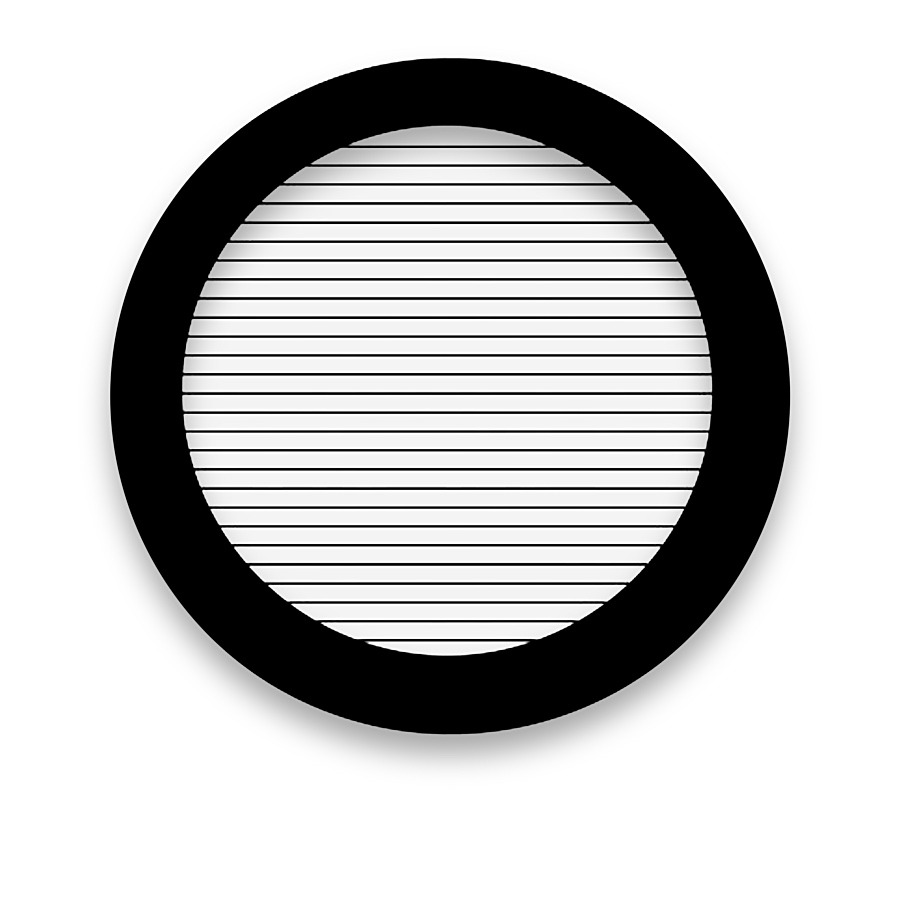

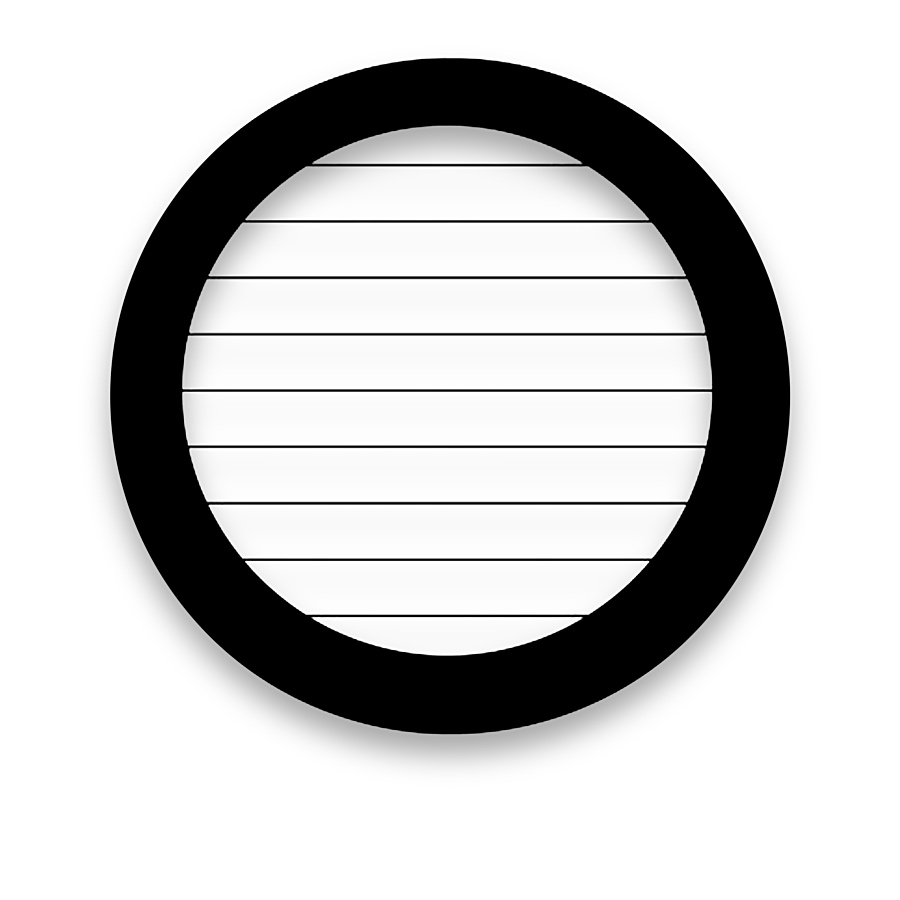

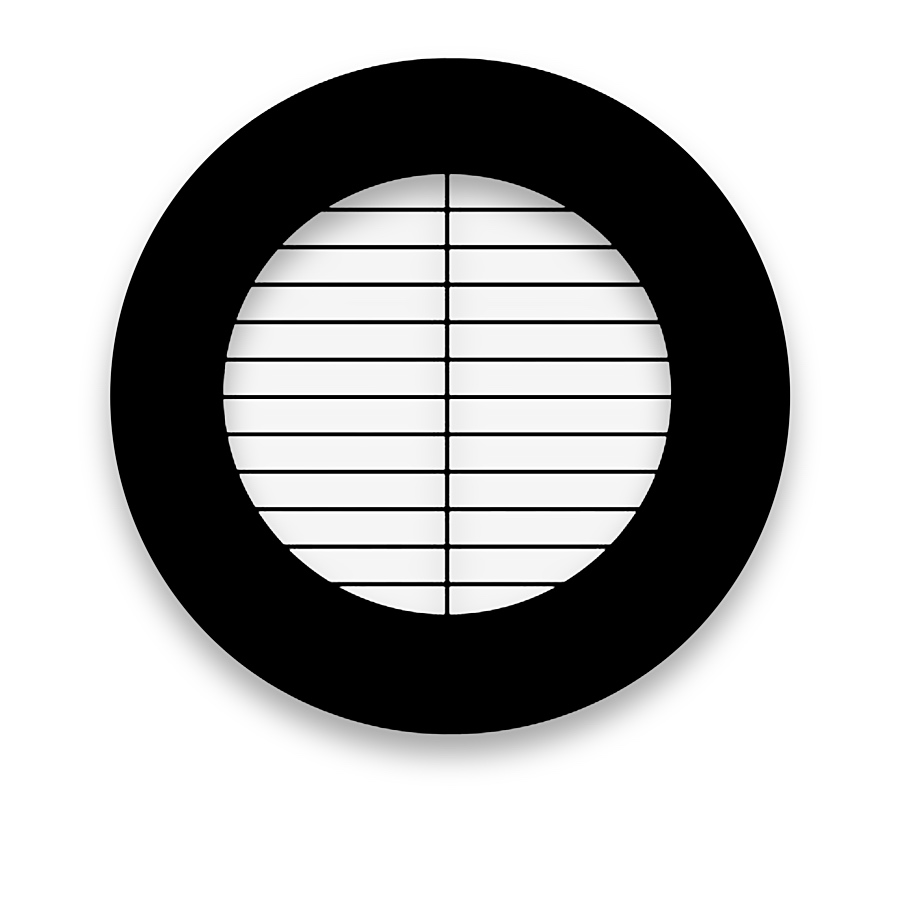

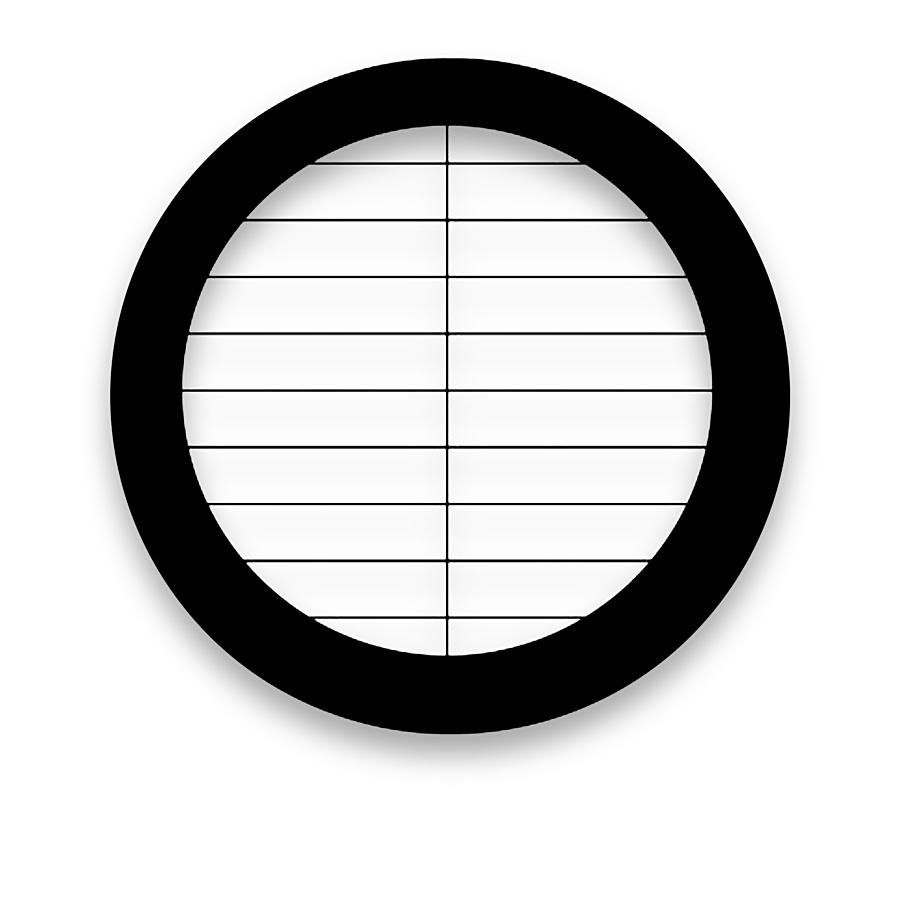

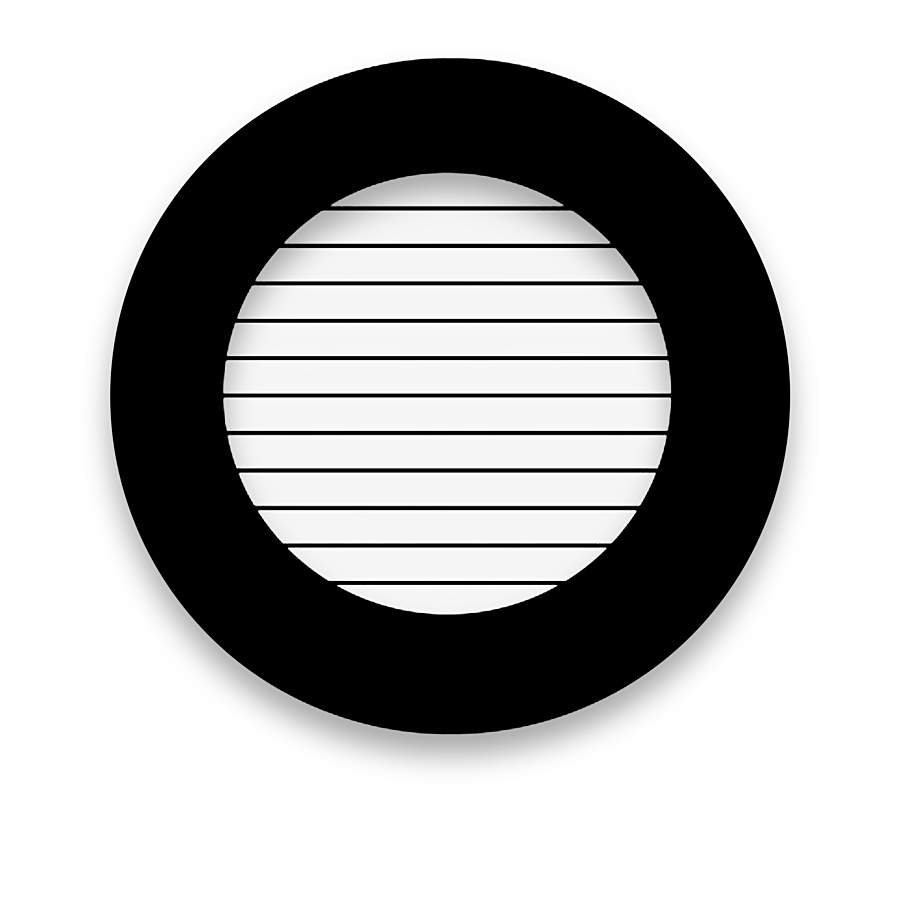

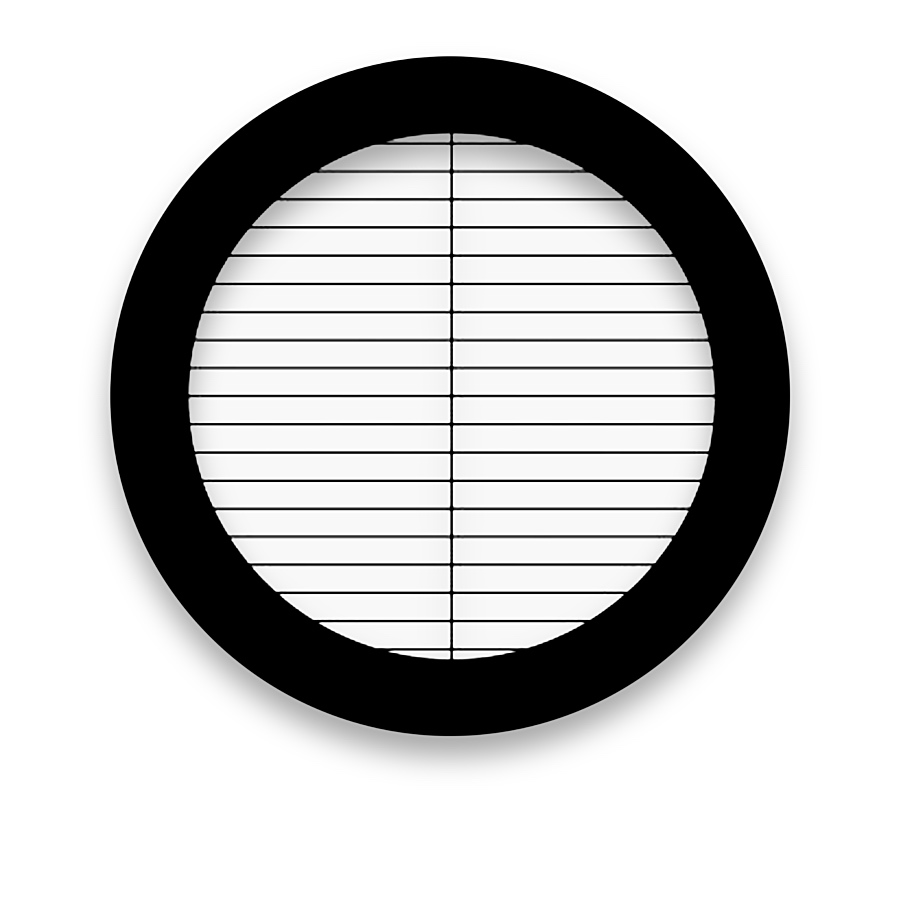

Parallel-bar TEM grids provide directional specimen support with metal bars.
Define bar direction and spacing for the specimen and field, and match film and frame to the holder.
Bar spacing, width, direction, metal, support film and holder dimensions.
These are specimen supports for TEM. Optical glass gratings instead modulate an optical beam with a patterned film.
