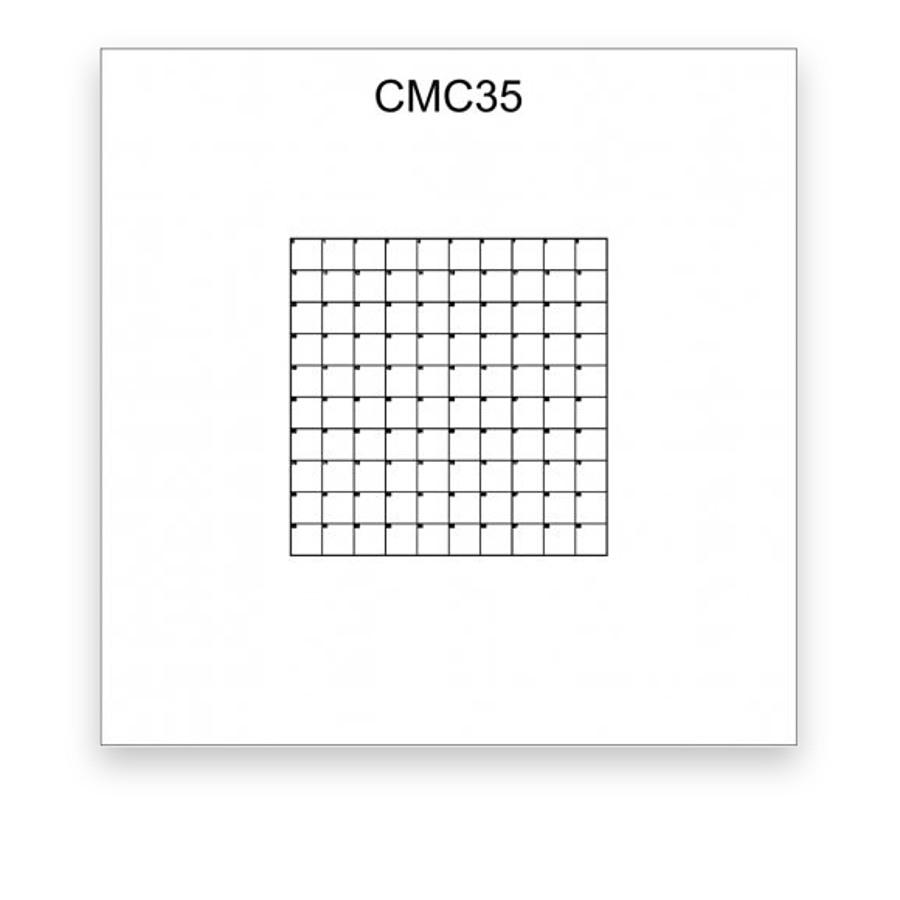

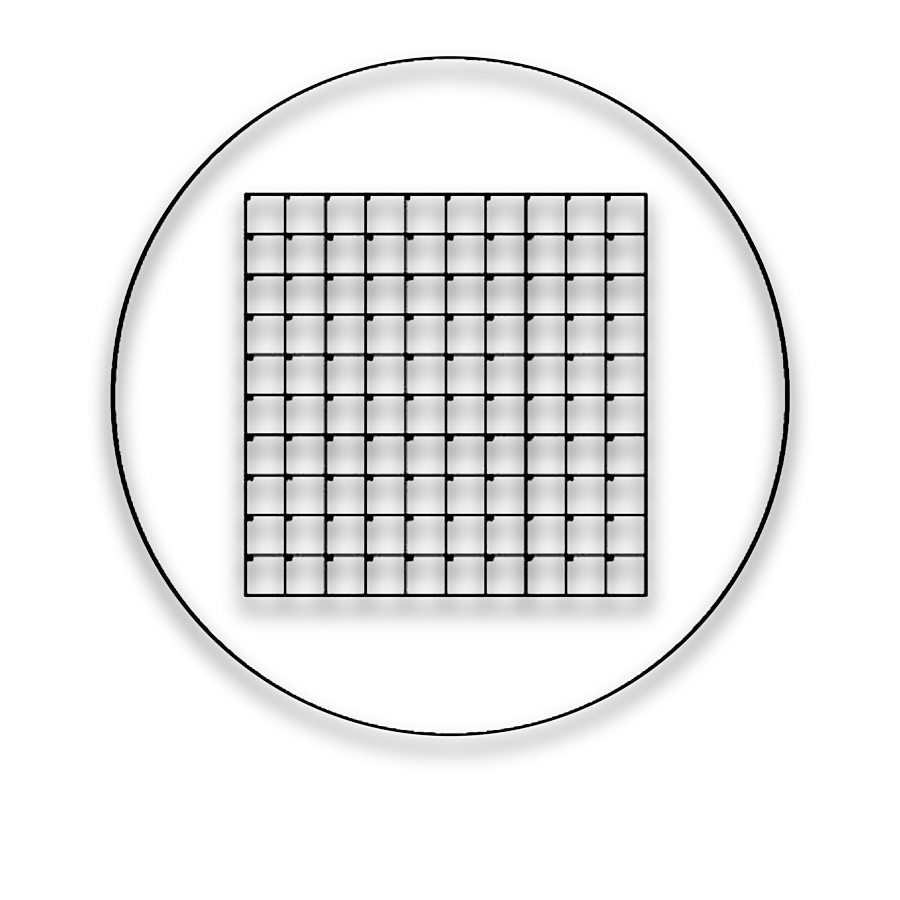

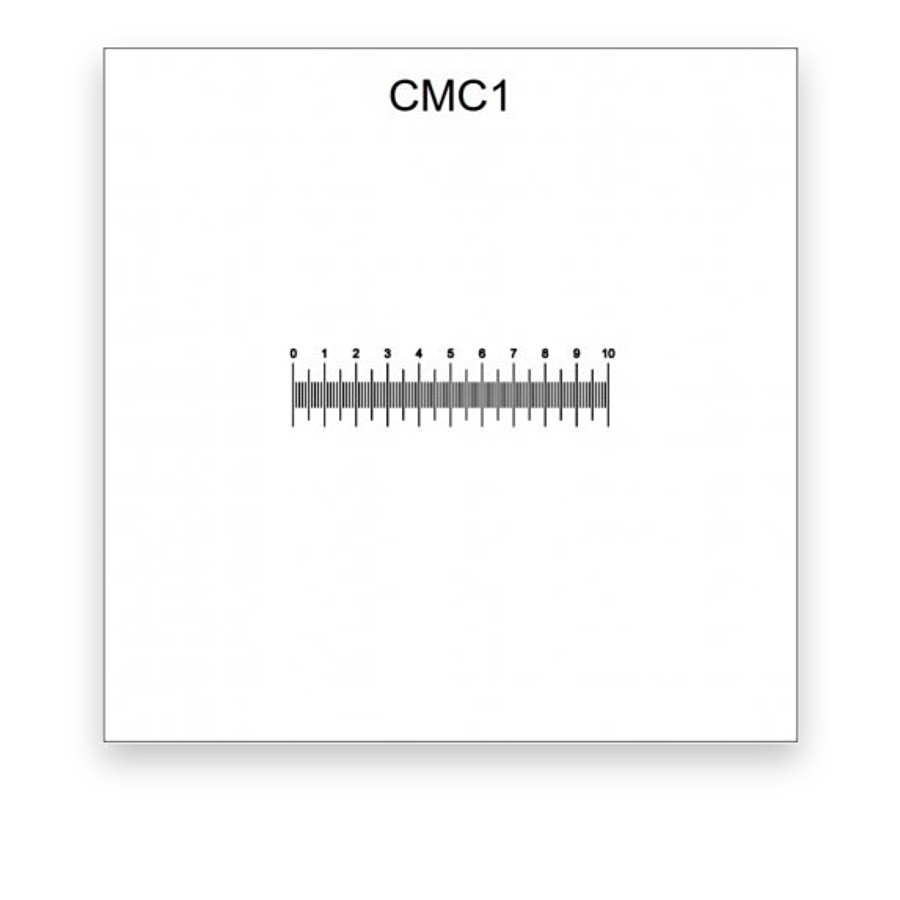

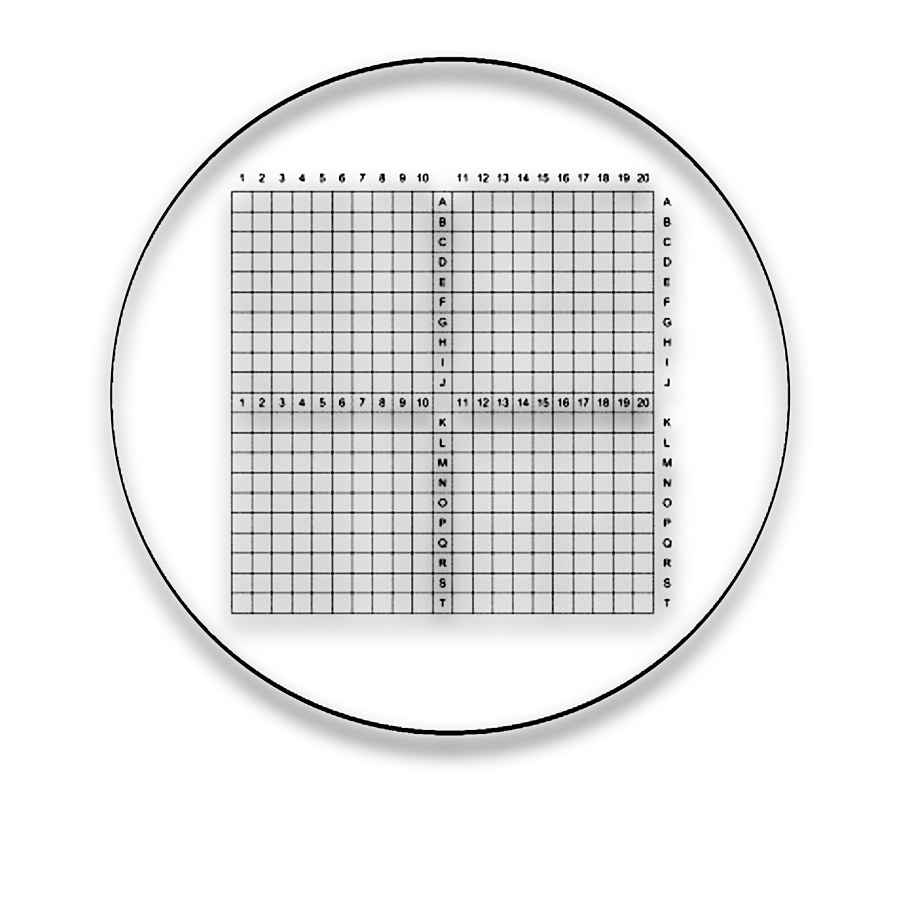

Indexed film coverslips carry coordinate marks on a thin polymer support for locating regions during microscopy. The coordinate pattern stays with the specimen support rather than the eyepiece field.
The CMC family uses polyester film. Polymer film is a separate material from optical glass and must be evaluated with the mounting medium, cleaning method and imaging conditions.
Labels and orientation marks help transfer a recorded location between observations. Keep the specimen-to-film relationship fixed; changing that relationship invalidates the old address even if the film labels remain readable.
Indexed film coverslips carry coordinate marks on a thin polymer support for locating regions during microscopy. The coordinate pattern stays with the specimen support rather than the eyepiece field.
Use a labelled film reference when a specimen region must be recorded and revisited, including workflows that correlate observations from more than one imaging method.
A polymer film coverslip, a glass coverslip and a rigid eyepiece reticle have different thickness, stiffness and optical behaviour. They are not interchangeable based only on a similar printed grid.
Coordinate layout, pitch, labels and orientation define how regions are addressed. Film thickness and compatibility with specimen preparation determine the usable mounting method.
An indexed film component. A counting-chamber cover requires a separate rigid seating and depth definition.
Indexed polymer film for recording and relocating specimen regions.
No. A counting volume also needs a defined area and chamber depth maintained by a compatible chamber and cover.

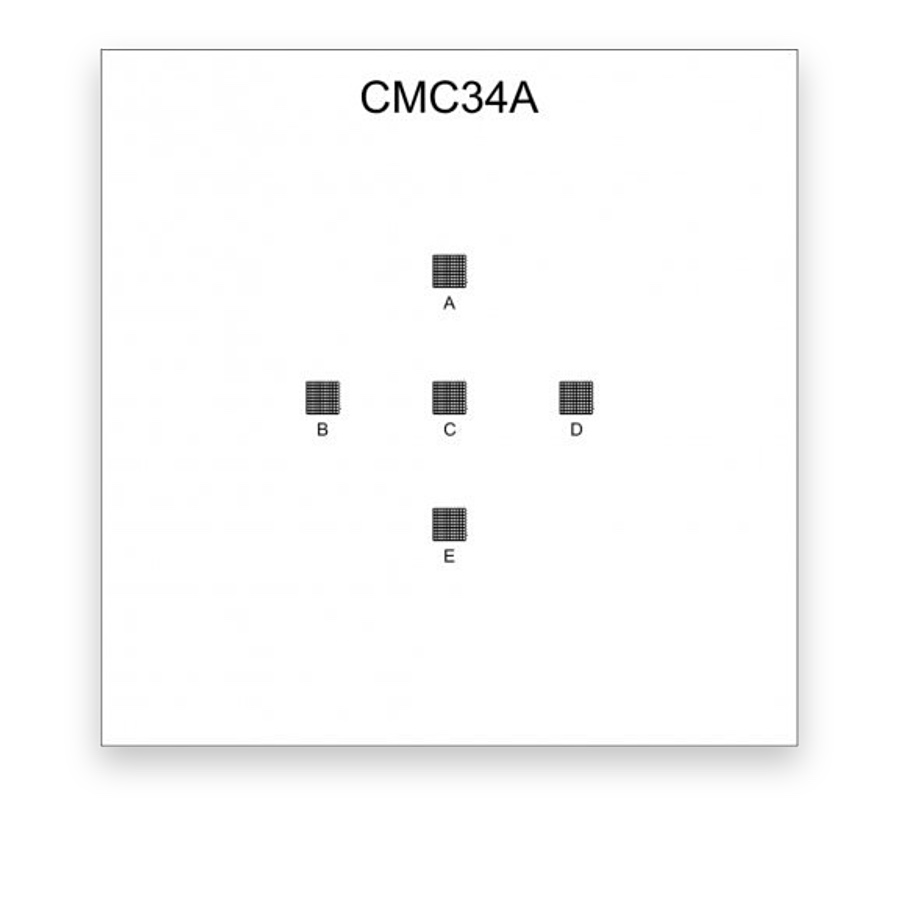

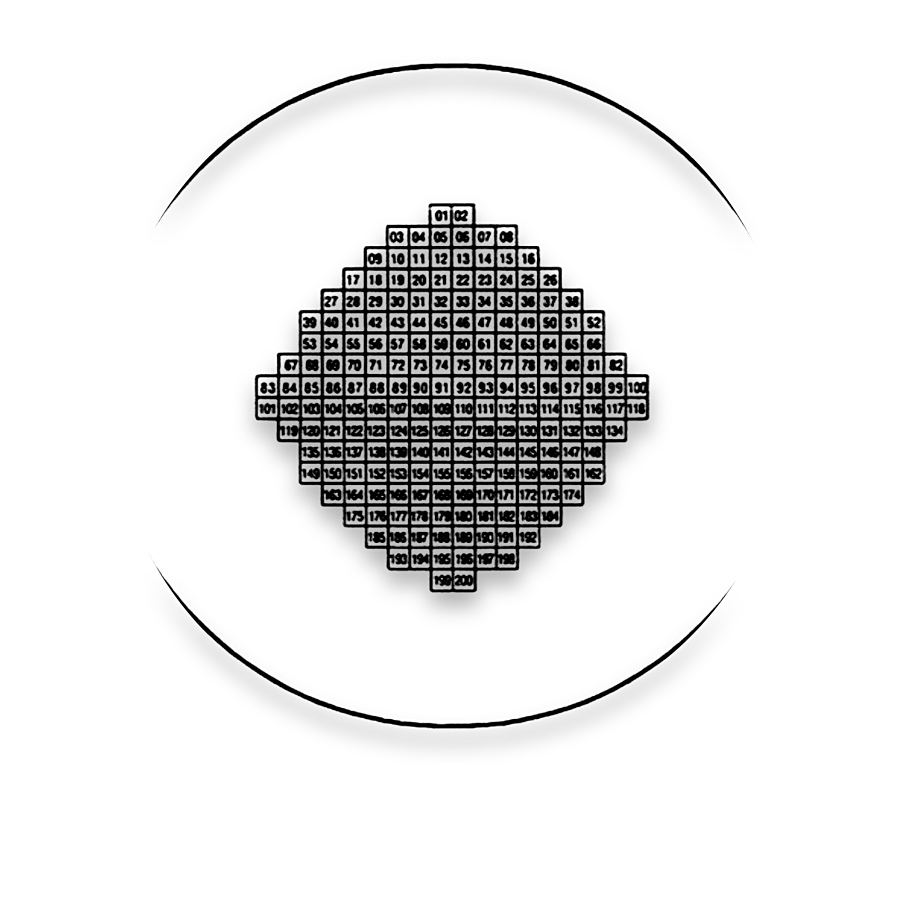

Patterned finder cover glasses use identifiers or coordinates to record and relocate specimen regions.
Choose marks that remain readable in the required field. State the coordinate direction and observation side.
Coordinate map, labels, pitch, cover-glass outline, thickness and viewing direction.
Finder patterns emphasise relocation. A chamber cover must match the chamber seating and depth geometry; select by the actual use.
